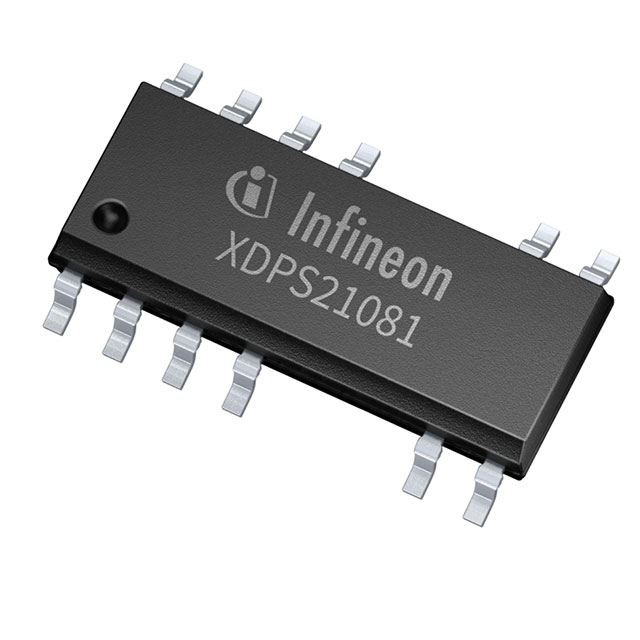

XDPS21081XUMA1
Infineon Technologies
XDP SMPS TV/PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XDPS21081XUMA1
Infineon Technologies
XDP SMPS TV/PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XDPS21081XUMA1 |
|---|---|
| Clock Sync | False |
| Control Features | Frequency Control, Enable, Current Limit, Dead Time Control, Soft Start |
| Frequency - Switching [Max] | 139.1 kHz |
| Frequency - Switching [Min] | 23 kHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 3.9 mm |
| Package / Case | 16-SOIC |
| Package / Case | 0.154 in, 12 |
| Supplier Device Package | PG-DSO-12-20 |
| Synchronous Rectifier | False |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) [Max] | 20.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 7.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.54 | |
| 10 | $ 2.28 | |||
| 25 | $ 2.15 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.72 | |||
| 500 | $ 1.51 | |||
| 1000 | $ 1.25 | |||
| Digi-Reel® | 1 | $ 2.54 | ||
| 10 | $ 2.28 | |||
| 25 | $ 2.15 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.72 | |||
| 500 | $ 1.51 | |||
| 1000 | $ 1.25 | |||
| Tape & Reel (TR) | 2500 | $ 1.16 | ||
| 5000 | $ 1.12 | |||
Description
General part information
XDPS21081 Series
Flyback Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC PG-DSO-12-20
