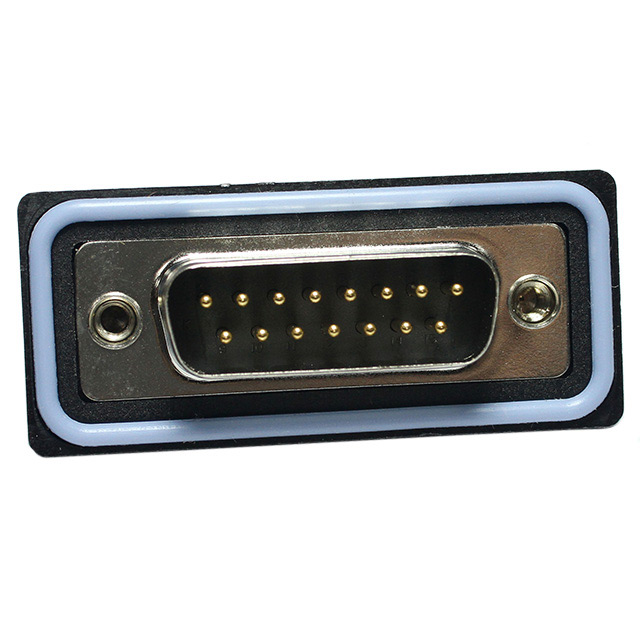

SDB-15PMMS-SL8001
ActiveAmphenol LTW
CONN D-SUB PLUG 15POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDB-15PMMS-SL8001
ActiveAmphenol LTW
CONN D-SUB PLUG 15POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDB-15PMMS-SL8001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents, Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.92 | |
| 10 | $ 9.83 | |||
| 30 | $ 9.26 | |||
| 60 | $ 9.02 | |||
| 90 | $ 8.78 | |||
| 240 | $ 7.83 | |||
| 450 | $ 7.36 | |||
| 960 | $ 6.50 | |||
Description
General part information
SDB-15PMMS Series
15 Position D-Sub Plug, Male Pins Connector
