Q-0D0110005009i
ActiveAmphenol Custom Cable

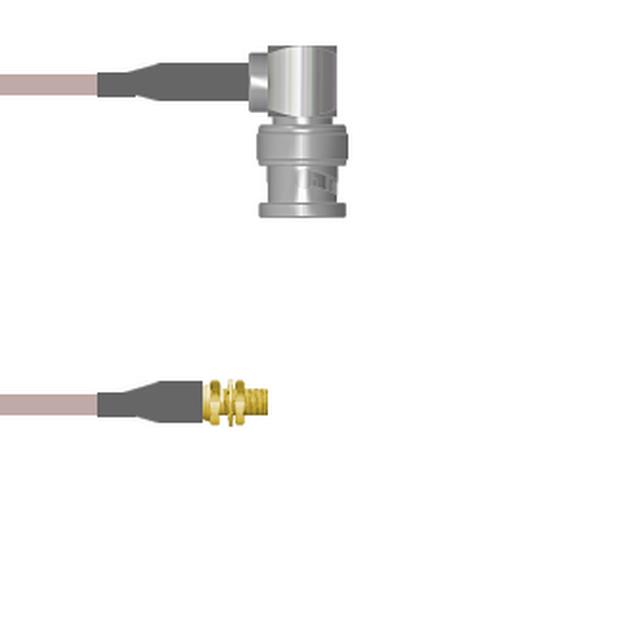

CBL ASSY BNC-MCX PLUG-JACK 9"
Deep-Dive with AI
Search across all available documentation for this part.
Q-0D0110005009i
ActiveAmphenol Custom Cable
CBL ASSY BNC-MCX PLUG-JACK 9"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0D0110005009i |
|---|---|
| 1st Connector | BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 9 " |
| Length | 228.6 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to MCX |
Q-0D0110 Series
| Part | 1st Connector | Overall Impedance | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Color | Features | 2nd Contact Gender | 1st Connector Mounting Type | Frequency - Max [Max] | 1st Contact Gender | Length | Length | Style | 2nd Connector | Cable Type | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Black | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 91.44 cm | 36 in | BNC to MCX | MCX Jack | RG-174 | |
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Black | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 76.2 mm | 3 in | BNC to MCX | MCX Jack | RG-174 | |
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Copper | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 1.8 m | 72 in | BNC to MCX | MCX Jack | RG-316 | 6 ft |
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Copper | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 228.6 mm | 9 " | BNC to MCX | MCX Jack | RG-316 | |
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Black | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 2.5 m | 98.4 in | BNC to MCX | MCX Jack | RG-174 | 8.2 ' |
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Black | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 1.8 m | 72 in | BNC to MCX | MCX Jack | RG-174 | 6 ft |
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Black | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 2.1 m | 84 in | BNC to MCX | MCX Jack | RG-174 | 7 ft |
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Black | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 1.5 m | 59.1 in | BNC to MCX | MCX Jack | RG-174 | 4.9 ft |
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Black | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 750 mm | 29.53 " | BNC to MCX | MCX Jack | RG-174 | |
Amphenol Custom Cable | BNC Plug Right Angle | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Copper | Shielded | Female | Free Hanging (In-Line) | 4 GHz | Male | 304.8 mm | 12 " | BNC to MCX | MCX Jack | RG-316 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 79.41 | |
| 25 | $ 77.86 | |||
| 50 | $ 76.32 | |||
| 100 | $ 74.78 | |||
| 250 | $ 73.23 | |||
Description
General part information
Q-0D0110 Series
Cable Assembly Coaxial BNC to MCX RG-316 9.000" (228.60mm)
Documents
Technical documentation and resources
No documents available
