100025321

Active

Telegartner Inc

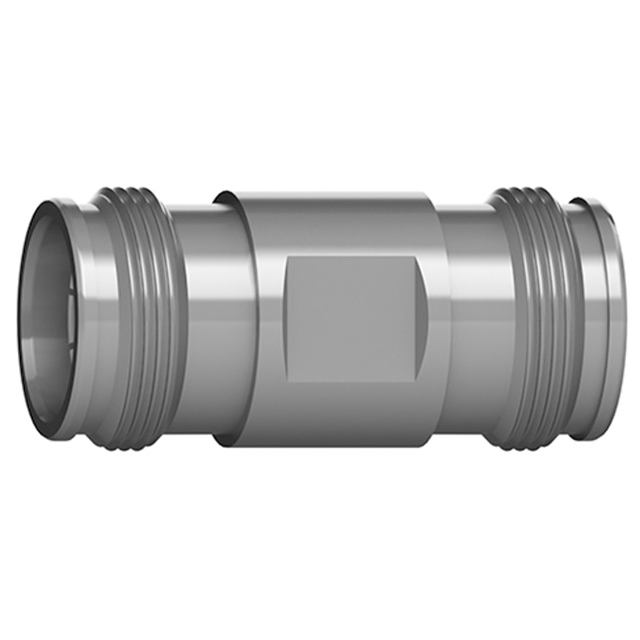

4.3-10 ADAPT STR F-F

Search across all available documentation for this part.

Active

Telegartner Inc

4.3-10 ADAPT STR F-F

Technical Specifications

Parameters and characteristics for this part

Specification	100025321

Adapter Series [Max]	4.3/10
Adapter Series [Min]	4.3/10
Adapter Type	Jack to Jack
Body Finish	Silver
Body Material	Copper Alloy
Center Contact Material	Copper Alloy
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	4.3/10 Jack, Female Socket
Convert To (Adapter End)	Female Socket, 4.3/10 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Center Contact Plating	Dielectric Material	Frequency - Max [Max]	Adapter Type	Adapter Series [Max]	Adapter Series [Min]	Style	Body Finish	Body Material	Center Gender	Convert From (Adapter End)	Ingress Protection	Impedance	Center Contact Material	Conversion Type	Convert To (Adapter End)	Mounting Feature
Telegartner Inc 100025321	85 °C	-40 °C	Free Hanging (In-Line)	Silver	Polytetrafluoroethylene (PTFE)	6000 MHz	Jack to Jack	4.3/10	4.3/10	Straight	Silver	Copper Alloy	Female to Female	4.3/10 Jack Female Socket	IP68 - Dust Tight Waterproof	50 Ohms	Copper Alloy	Same Series	4.3/10 Jack Female Socket
Telegartner Inc 100025322	85 °C	-40 °C		Silver	Polytetrafluoroethylene (PTFE)	6000 MHz	Jack to Jack	4.3/10	4.3/10	Straight	Silver	Brass	Female to Female	4.3/10 Jack Female Socket	IP68 - Dust Tight Waterproof	50 Ohms	Copper Alloy	Same Series	4.3/10 Jack Female Socket	Bulkhead
Telegartner Inc 100023524	85 °C	-40 °C	Free Hanging (In-Line)	Silver	Polytetrafluoroethylene (PTFE)	6000 MHz	Plug to Jack	4.3/10	4.3/10	Straight	Silver	Brass		4.3/10 Jack Female Socket	IP68 - Dust Tight Waterproof	50 Ohms	Copper Alloy	Same Series	4.3/10 Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.3/10 Jack, Female Socket To 4.3/10 Jack, Female Socket 50 Ohms
