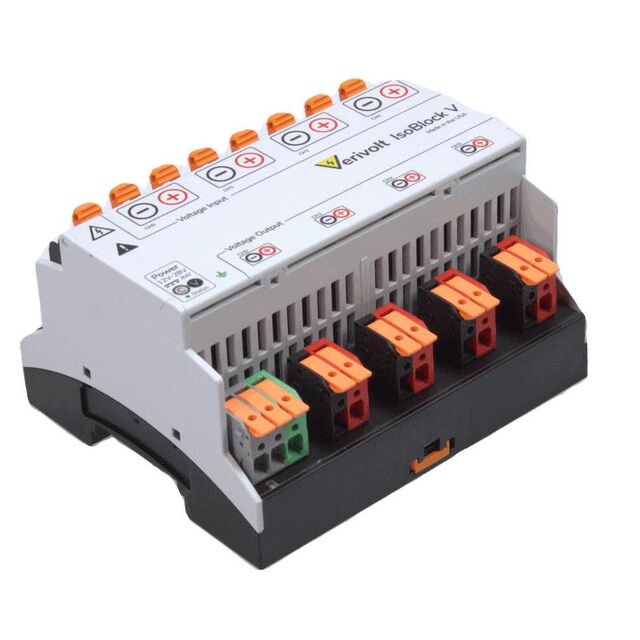

ISOBLOCK V-4C (50V 10V0.1%)

Active

Verivolt LLC

TRANSDUCER VOLTAGE 9-28VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IsoBlock V Wiring Diagram

ISOBLOCK V-4C (50V 10V0.1%)

Active

Verivolt LLC

TRANSDUCER VOLTAGE 9-28VDC

Deep-Dive with AI

DocumentsDatasheet IsoBlock V Wiring Diagram

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISOBLOCK V-4C (50V 10V0.1%)

Accuracy	0.1 %
Input Range	50 V
Isolation	1500 V
Mounting Type	DIN Rail
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output	10 V
Response Time	2.8 µs
Termination Style	Spring Terminal
Type	Voltage Transducer
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	9 V

ISOBLOCK V-4C Series

Part	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Accuracy	Output	Mounting Type	Isolation	Type	Input Range	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Output [Max]	Output [Min]	Input Range [Min]	Input Range [Max]
Verivolt LLC ISOBLOCK V-4C (1500V 5V)	Spring Terminal	28 V	9 V	0.2 %	5 V	DIN Rail	1500 V	Voltage Transducer	1500 V	70 °C	-25 °C	2.8 µs
Verivolt LLC ISOBLOCK V-4C (150VAC 7VAC)	Spring Terminal	28 V	9 V	0.2 %		DIN Rail	1500 V	Voltage Transducer		70 °C	-25 °C	2.8 µs	7 VAC	0 VAC	0 VAC	150 VAC
Verivolt LLC ISOBLOCK V-4C (50V 10V0.1%)	Spring Terminal	28 V	9 V	0.1 %	10 V	DIN Rail	1500 V	Voltage Transducer	50 V	70 °C	-25 °C	2.8 µs
Verivolt LLC ISOBLOCK V-4C (500VAC 7VAC)	Spring Terminal	28 V	9 V	0.2 %		DIN Rail	1500 V	Voltage Transducer		70 °C	-25 °C	2.8 µs	7 VAC	0 VAC	0 VAC	500 VAC
Verivolt LLC ISOBLOCK V-4C (500VAC 7VAC0.1%)	Spring Terminal	28 V	9 V	0.1 %		DIN Rail	1500 V	Voltage Transducer		70 °C	-25 °C	2.8 µs	7 VAC	0 VAC	0 VAC	500 VAC
Verivolt LLC ISOBLOCK V-4C (750V 5V)	Spring Terminal	28 V	9 V	0.2 %	5 V	DIN Rail	1500 V	Voltage Transducer	750 V	70 °C	-25 °C	2.8 µs
Verivolt LLC ISOBLOCK V-4C (500V 10V0.1%)	Spring Terminal	28 V	9 V	0.1 %	10 V	DIN Rail	1500 V	Voltage Transducer		70 °C	-25 °C	2.8 µs			-500 V	500 V
Verivolt LLC ISOBLOCK V-4C (300V 10V)	Spring Terminal	28 V	9 V	0.2 %	10 V	DIN Rail	1500 V	Voltage Transducer	300 V	70 °C	-25 °C	2.8 µs
Verivolt LLC ISOBLOCK V-4C (150VAC 7VAC0.1%)	Spring Terminal	28 V	9 V	0.1 %		DIN Rail	1500 V	Voltage Transducer		70 °C	-25 °C	2.8 µs	7 VAC	0 VAC	0 VAC	150 VAC
Verivolt LLC ISOBLOCK V-4C (750V 10V0.1%)	Spring Terminal	28 V	9 V	0.1 %	10 V	DIN Rail	1500 V	Voltage Transducer	750 V	70 °C	-25 °C	2.8 µs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1855.17

Description

General part information

ISOBLOCK V-4C Series

Voltage Transducer ±50V Input ±10V Output 9 ~ 28VDC DIN Rail

Documents

Technical documentation and resources

Datasheet

IsoBlock V Wiring Diagram

Datasheet
