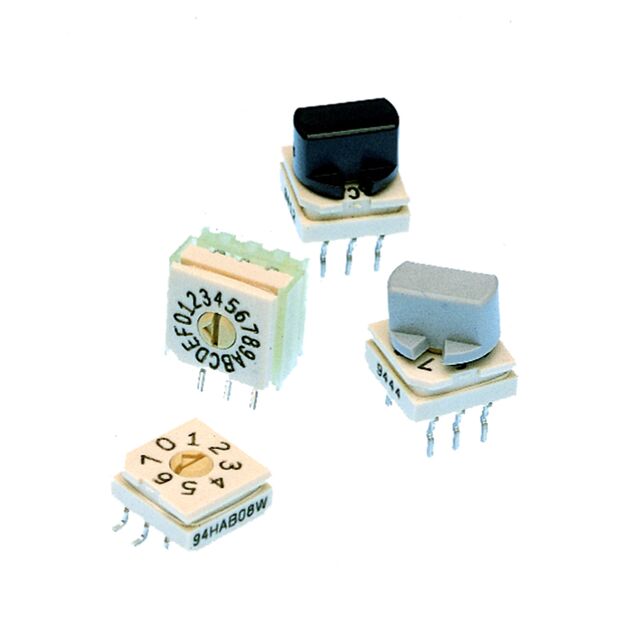

94HCB10RAT
ActiveGrayhill Inc.
SWITCH ROTARY DIP BCD 0.1A 50V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
94HCB10RAT
ActiveGrayhill Inc.
SWITCH ROTARY DIP BCD 0.1A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 94HCB10RAT |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Rotary with Shaft |
| Body Material | Plastic |
| Circuit | BCD |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 100 mA |
| Features | Sealed |
| Height Above Board [z] | 10.16 mm |
| Height Above Board [z] | 0.4 " |
| Length | 10.92 mm |
| Length [x] | 0.43 in |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 50 V |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.88 | |
| 24 | $ 6.28 | |||
| 48 | $ 5.71 | |||
| 120 | $ 4.93 | |||
| 264 | $ 4.48 | |||
| 504 | $ 4.16 | |||
| 1008 | $ 3.86 | |||
| 2520 | $ 3.70 | |||
Description
General part information
94HCB10 Series
Dip Switch BCD 10 Position Through Hole, Right Angle Rotary with Shaft Actuator 100mA 50VDC
