PPTC121LFBN

Obsolete

Sullins Connector Solutions

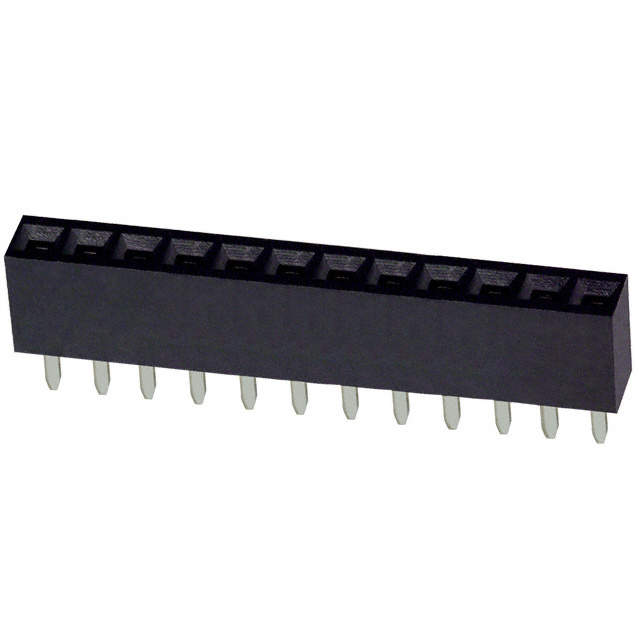

CONN HDR 12POS 0.1 TIN PCB

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 12POS 0.1 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PPTC121LFBN

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Pitch - Mating	Pitch - Mating	Contact Material	Fastening Type	Mounting Type	Number of Positions	Connector Type	Contact Shape	Current Rating (Amps)	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Post	Contact Type	Number of Rows	Voltage Rating	Contact Length - Post
Sullins Connector Solutions PPTC121LFBN	Solder	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole	12	Header	Square	3 A	Polyester	-40 °C	105 ░C	0.335 "	8.51 mm	UL94 V-0	All	Black	3.2 mm	0.126 in	Tin	Female Socket	1	250 VDC
Sullins Connector Solutions PPTC121KFXC	Solder	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Surface Mount	12	Header Top or Bottom Entry	Square	3 A	Polyester	-40 °C	105 ░C	0.28 in	7.1 mm	UL94 V-0	All	Black			Tin	Female Socket	1	250 VDC
Sullins Connector Solutions PPTC121LGBN-RC	Solder	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	12	Header	Square	3 A	Polyester	-40 °C	105 ░C	0.1 in	2.54 mm	UL94 V-0	All	Black	3.15 mm		Tin	Female Socket	1	250 VDC	0.124 "
Sullins Connector Solutions PPTC121LGBN	Solder	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	12	Header	Square	3 A	Polyester	-40 °C	105 ░C	0.1 in	2.54 mm	UL94 V-0	All	Black	3.15 mm		Tin	Female Socket	1	250 VDC	0.124 "
