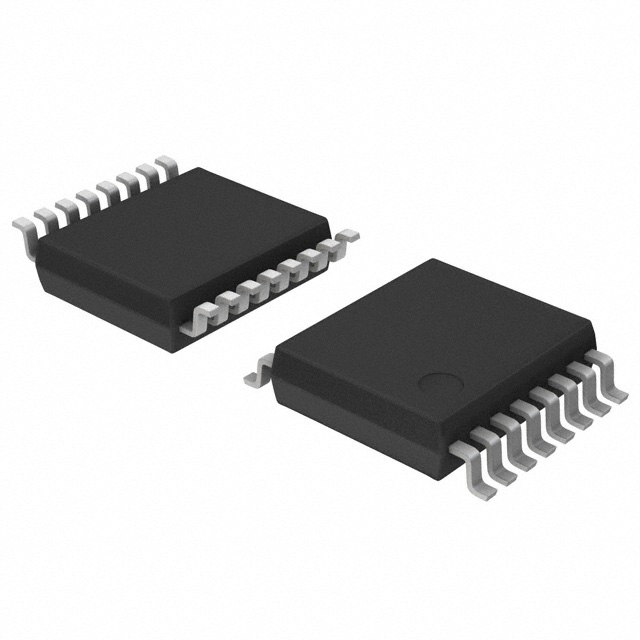

UDA1334TS/N1,112

Obsolete

Freescale Semiconductor - NXP

IC DAC/AUDIO 24BIT 100K 16SSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UDA1334TS/N1,112

Obsolete

Freescale Semiconductor - NXP

IC DAC/AUDIO 24BIT 100K 16SSOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UDA1334TS/N1,112

Data Interface	I2S
Mounting Type	Surface Mount
Number of Channels [custom]	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-LSSOP
Resolution (Bits)	24 b
Sampling Rate (Per Second)	100k
Supplier Device Package	16-SSOP
Type	Audio, DAC
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V
Voltage Supply Source	Analog and Digital

UDA133 Series

Part	Sampling Rate (Per Second)	Data Interface	Package / Case	Package / Case [x]	Package / Case [y]	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Resolution (Bits)	Number of Channels [custom]	Voltage Supply Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Sampling Rate (Per Second)	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]
Freescale Semiconductor - NXP UDA1334BT/N2,118	100k	I2S	16-SOIC	0.154 in	3.9 mm	Surface Mount	16-SO	85 °C	-40 °C	24 b	3	Analog and Digital	3.6 V	1.8 V	Audio DAC
Freescale Semiconductor - NXP UDA1334TS/N1,112	100k	I2S	16-LSSOP			Surface Mount	16-SSOP	85 °C	-40 °C	24 b	3	Analog and Digital	3.6 V	1.8 V	Audio DAC
Freescale Semiconductor - NXP UDA1334ATS/N2,118		I2S	16-LSSOP			Surface Mount	16-SSOP	85 °C	-40 °C	24 b	2	Analog and Digital	3.6 V	2.4 V	Audio DAC	96 kHz
Freescale Semiconductor - NXP UDA1338H/N1,518		Serial	44-QFP			Surface Mount	44-PQFP (10x10)	85 °C	-20 C	24 b					Stereo Audio		3.6 V	2.7 V	5	6	100 db	114 db	2.7 V	3.6 V
Freescale Semiconductor - NXP UDA1334ATS/N2,112	100k	I2S	16-LSSOP			Surface Mount	16-SSOP	85 °C	-40 °C	24 b	3	Analog and Digital	3.6 V	2.4 V	Audio DAC
Freescale Semiconductor - NXP UDA1334BT/N2,112	100k	I2S	16-SOIC	0.154 in	3.9 mm	Surface Mount	16-SO	85 °C	-40 °C	24 b	3	Analog and Digital	3.6 V	1.8 V	Audio DAC
Freescale Semiconductor - NXP UDA1334TS/N1,118	100k	I2S	16-LSSOP			Surface Mount	16-SSOP	85 °C	-40 °C	24 b	3	Analog and Digital	3.6 V	1.8 V	Audio DAC
Freescale Semiconductor - NXP UDA1334BTS/N2,112	100k	I2S	16-LSSOP			Surface Mount	16-SSOP	85 °C	-40 °C	24 b	3	Analog and Digital	3.6 V	1.8 V	Audio DAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UDA133 Series

DAC, Audio 24 b 100k I2S 16-SSOP
