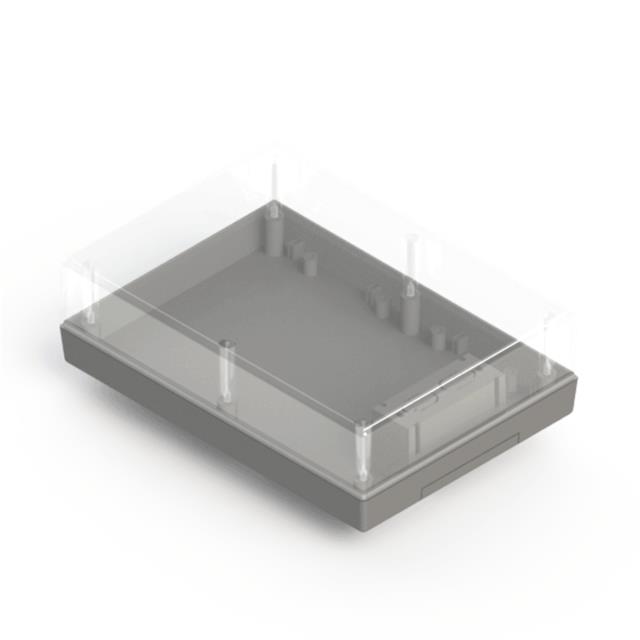

272C,GY

Active

Serpac

BOX PLASTIC 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	272C,GY

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, Polycarbonate
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	200.03 g
Weight	0.441 lb

Part	Ratings	Design	Thickness	Thickness	Color	Features	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Material	Area (L x W) [custom]	Area (L x W) [custom]
Serpac 272C,GY	IP40 NEMA 1	Hand Held Split Sides	2.54 mm	0.1 in	Clear Cover/Door Gray	Battery Compartment PCB Supports	9 V	123.95 mm	174.75 mm	4.88 in	6.88 in	200.03 g	0.441 lb	50.8 mm	2 in	33.6 in²	217 cm²	Box	Plastic Polycarbonate
Serpac 272C,AL	IP40 NEMA 1	Hand Held Split Sides	2.54 mm	0.1 in		Battery Compartment PCB Supports	9 V	123.95 mm	174.75 mm	4.88 in	6.88 in	200.03 g	0.441 lb	50.8 mm	2 in	33.6 in²	217 cm²	Box	Plastic Polycarbonate
Serpac 272C,BK	IP40 NEMA 1	Hand Held Split Sides	2.54 mm	0.1 in	Black Clear Cover/Door	Battery Compartment PCB Supports	9 V	123.95 mm	174.75 mm	4.88 in	6.88 in	200.03 g	0.441 lb	50.8 mm	2 in			Box	Plastic Polycarbonate	217 cm˛	33.6 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.73

General part information

Box Plastic, Polycarbonate Gray, Clear Cover/Door Hand Held, Split Sides 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.000" (50.80mm)
