M3DYK-2006R

Active

3M (TC)

IDC CABLE - MKR20K/MC20M/MPD20K

Deep-Dive with AI

Search across all available documentation for this part.

Documents4600 Series Drawing Ribbon Cable Assembly Length Guide +1

M3DYK-2006R

Active

3M (TC)

IDC CABLE - MKR20K/MC20M/MPD20K

Deep-Dive with AI

Documents4600 Series Drawing Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3DYK-2006R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Flange, Strain Relief (Socket), Polarizing Key, Strain Relief (Plug)
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3DYK Series

Part	Pitch - Cable	Pitch - Cable	Contact Finish	Color	Number of Rows	Shielding	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Number of Positions	Features	Connector Type	Length	Length	Length
3M (TC) M3DYK-1036R	0.05 "	1.27 mm	Gold	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	10	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug
3M (TC) M3DYK-5006R	0.05 "	1.27 mm	Gold	Multiple Ribbon	2	Unshielded			0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	50	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	152.4 mm	6 "	0.5 '
3M (TC) M3DYK-2006R	0.05 "	1.27 mm	Gold	Multiple Ribbon	2	Unshielded			0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	20	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	152.4 mm	6 "	0.5 '
3M (TC) M3DYK-1006R	0.05 "	1.27 mm	Gold	Multiple Ribbon	2	Unshielded			0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	10	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	152.4 mm	6 "	0.5 '
3M (TC) M3DYK-5036R	0.05 "	1.27 mm	Gold	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	50	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug
3M (TC) M3DYK-1006J	0.05 "	1.27 mm	Gold		2	Unshielded			0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	10	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	152.4 mm	6 "	0.5 '
3M (TC) M3DYK-2036R	0.05 "	1.27 mm	Gold	Multiple Ribbon	2	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	20	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug
3M (TC) M3DYK-3418J	0.05 "	1.27 mm	Gold		2	Unshielded	1.5 ft	457.2 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	34	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug
3M (TC) M3DYK-4006R	0.05 "	1.27 mm	Gold	Multiple Ribbon	2	Unshielded			0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	40	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug	152.4 mm	6 "	0.5 '
3M (TC) M3DYK-5036J	0.05 "	1.27 mm	Gold		2	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	50	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	Socket to Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.51
		10	$ 14.63
		25	$ 14.07
		50	$ 13.51
		100	$ 12.76
		250	$ 11.63
		500	$ 10.88
		1000	$ 9.98

Description

General part information

M3DYK Series

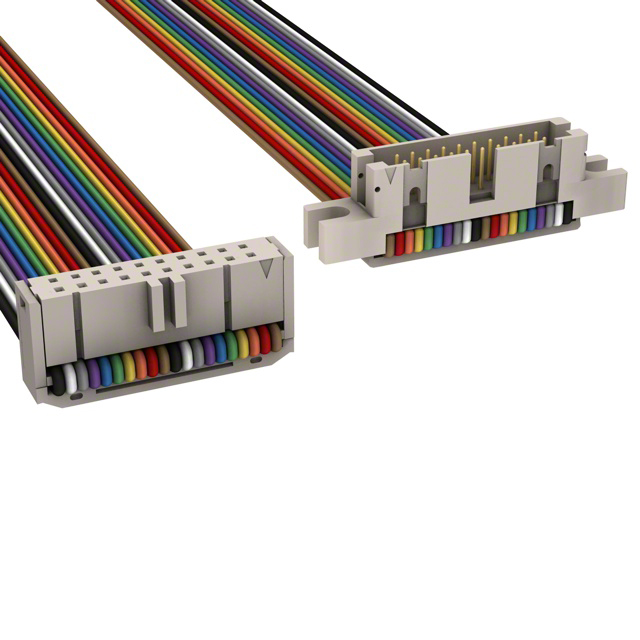

20 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

4600 Series Drawing

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
