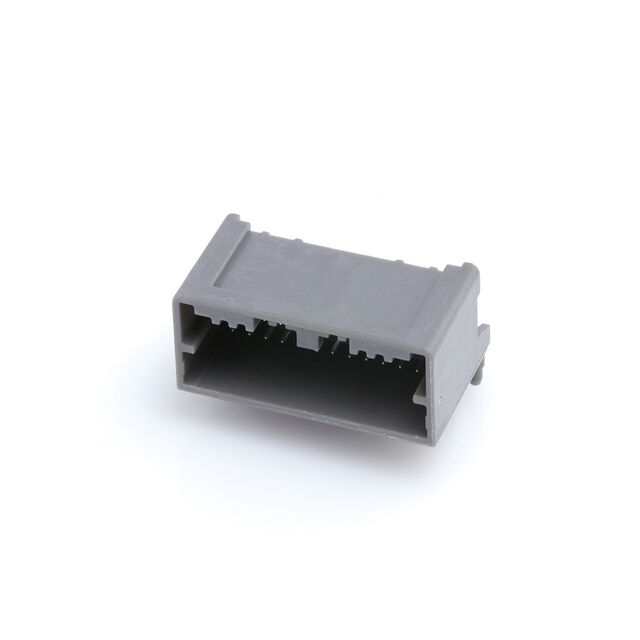

0348268202

Active

Molex

CONN HEADER R/A 20POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0348268202

Active

Molex

CONN HEADER R/A 20POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0348268202

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.55 mm
Contact Length - Mating	0.218 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Gray
Insulation Height	0.46 in
Insulation Height	11.68 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034826 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Insulation Height	Insulation Height	Number of Rows	Style	Material Flammability Rating	Insulation Color	Termination	Voltage Rating	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Type	Features	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Contact Material	Fastening Type	Connector Type	Number of Positions	Contact Finish - Post	Contact Length - Post	Number of Positions	Applications	Row Spacing - Mating	Row Spacing - Mating
Molex 0348269160	-40 °C	105 ░C	4 A	Square	12.17 mm	0.479 in	2	Board to Cable/Wire	UL94 HB	Black	Solder	14 V	Through Hole Right Angle	0.11 in	2.8 mm	0.219 in	5.56 mm	Shrouded - 4 Wall	Male Pin	Board Guide	0.079 in	2 mm	All	Brass	Latch Holder	Header	16	Tin
Molex 0348268200				Square	11.68 mm	0.46 in	2	Board to Cable/Wire	UL94 V-0	Black	Solder		Through Hole Right Angle	0.11 in		0.218 in	5.55 mm	Shrouded - 4 Wall	Male Pin	Board Guide	0.079 in	2 mm	All	Brass	Latch Holder	Header		Tin	2.79 mm	20	Automotive
Molex 0348268202				Square	11.68 mm	0.46 in	2	Board to Cable/Wire	UL94 V-0	Gray	Solder		Through Hole Right Angle	0.11 in		0.218 in	5.55 mm	Shrouded - 4 Wall	Male Pin	Board Guide	0.079 in	2 mm	All	Brass	Latch Holder	Header		Tin	2.79 mm	20	Automotive
Molex 0348269202
Molex 0348268161				Square	11.68 mm	0.46 in	2	Board to Cable/Wire	UL94 V-0	Gray	Solder		Through Hole Right Angle	0.11 in		0.218 in	5.55 mm	Shrouded - 4 Wall	Male Pin	Board Guide	0.079 in	2 mm	All	Brass	Latch Holder	Header	16	Tin	2.79 mm		Automotive	0.079 in	2 mm
Molex 0348268125				Square	11.68 mm	0.46 in	2	Board to Cable/Wire	UL94 V-0	Gray	Solder		Through Hole Right Angle	0.11 in		0.218 in	5.55 mm	Shrouded - 4 Wall	Male Pin	Board Guide	0.079 in	2 mm	All	Brass	Latch Holder	Header		Tin	2.79 mm	12	Automotive
Molex 0348268241				Square	11.68 mm	0.46 in	2	Board to Cable/Wire	UL94 V-0	Gray	Solder		Through Hole Right Angle	0.11 in		0.218 in	5.55 mm	Shrouded - 4 Wall	Male Pin	Board Guide	0.079 in	2 mm	All	Brass	Latch Holder	Header		Tin	2.79 mm	24	Automotive	0.079 in	2 mm
Molex 0348269124
Molex 0348269242				Square	11.68 mm	0.46 in	2	Board to Cable/Wire	UL94 V-0	Gray	Solder		Through Hole Right Angle	0.11 in		0.218 in	5.55 mm	Shrouded - 4 Wall	Male Pin	Board Guide	0.079 in	2 mm	All	Brass	Latch Holder	Header		Tin	2.79 mm	24	Automotive
Molex 0348260126	-40 °C	100 °C	4 A	Square	11.68 mm	0.46 in	2	Board to Cable/Wire	UL94 HB	Gray	Solder	14 V	Through Hole Right Angle	0.11 in	2.8 mm	0.219 in	5.56 mm	Shrouded - 4 Wall	Male Pin	Board Guide	0.079 in	2 mm	All	Brass	Latch Holder	Header		Tin		12	Automotive	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1020	$ 2.44

Description

General part information

034826 Series

Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
