JMXFH1G02MCUDSU

Active

Souriau-Sunbank by Eaton

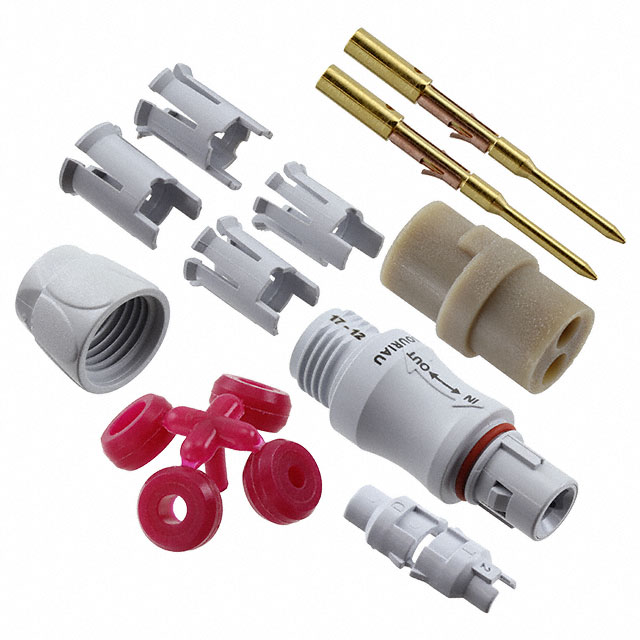

CONN PLUG MALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

JMXFH1G02MCUDSU

Active

Souriau-Sunbank by Eaton

CONN PLUG MALE 2POS GOLD CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JMXFH1G02MCUDSU

Applications	Medical, Industrial, Instrumentation
Backshell Material, Plating	Polyetherimide (PEI)
Color	Light Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50/IP68 - Dust Protected, Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Plastic
Shell Material	Polyetherimide (PEI)
Shell Size - Insert [Max]	2
Shell Size - Insert [Min]	1
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VDC

JMXFH1 Series

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Features	Applications	Color	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Shell Material	Ingress Protection	Insert Material	Connector Type	Material Flammability Rating	Voltage Rating	Contact Finish - Mating	Mounting Type	Fastening Type	Shielding	Orientation	Current Rating (Amps)	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Number of Positions	Termination
Souriau-Sunbank by Eaton JMXFH1G03FSUDSM	1	3	0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Brown Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Female Sockets Plug	UL94 V-0	230 V	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	9 A
Souriau-Sunbank by Eaton JMXFH1G05FSUDSU			0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Female Sockets Plug	UL94 V-0	230 V	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	7 A	1	5
Souriau-Sunbank by Eaton JMXFH1G02MCUDSU	1	2	0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Male Pins Plug	UL94 V-0	300 VDC	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	10 A			2	Crimp
Souriau-Sunbank by Eaton JMXFH1G05MCUDSU			0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Male Pins Plug	UL94 V-0	230 V	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	7 A	1	5		Crimp
Souriau-Sunbank by Eaton JMXFH1G07MSUDSU	1	7	0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Male Pins Plug	UL94 V-0	160 V	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	5 A			7
Souriau-Sunbank by Eaton JMXFH1G04MCUDSU	1	4	0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Male Pins Plug	UL94 V-0	230 V	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	8 A			4	Crimp
Souriau-Sunbank by Eaton JMXFH1G08MSUDSU	1	8	0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Male Pins Plug	UL94 V-0	100 V	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	5 A			8
Souriau-Sunbank by Eaton JMXFH1G10MSUDSU	1	10	0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Male Pins Plug	UL94 V-0	100 V	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	2.5 A			10
Souriau-Sunbank by Eaton JMXFH1G02MSUDSU	1	2	0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Male Pins Plug	UL94 V-0	300 VDC	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	10 A			2
Souriau-Sunbank by Eaton JMXFH1G08MSUDSM	1	8	0.5 µm	19.7 µin	Polyetherimide (PEI)	Backshell	Industrial Instrumentation Medical	Brown Light Gray	125 °C	-40 °C	Plastic	Polyetherimide (PEI)	IP50/IP68 - Dust Protected Dust Tight Waterproof	Polyetheretherketone (PEEK)	Male Pins Plug	UL94 V-0	100 V	Gold	Free Hanging (In-Line)	Push-Pull	Unshielded	G	5 A			8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 22.37

Description

General part information

JMXFH1 Series

2 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

No documents available
