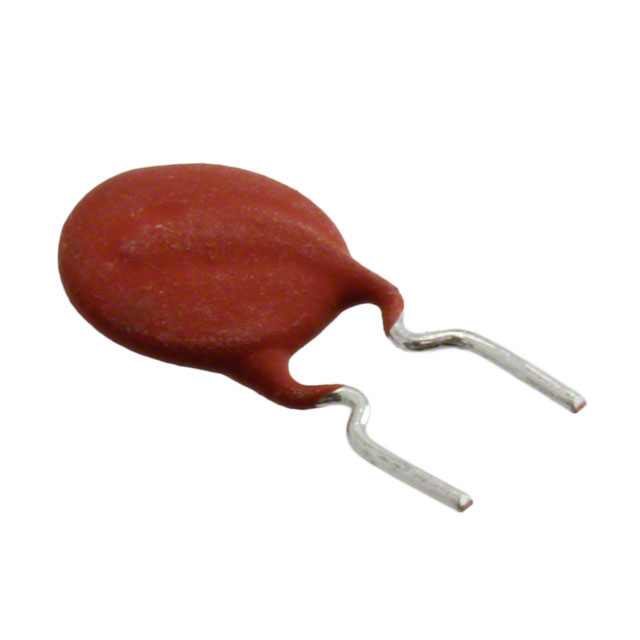

PTGL09BD4R7N2B51B0
ObsoleteMurata Power Solutions Inc.
PTC RESET FUSE 24V 216MA RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
PTGL09BD4R7N2B51B0
ObsoleteMurata Power Solutions Inc.
PTC RESET FUSE 24V 216MA RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTGL09BD4R7N2B51B0 |
|---|---|
| Approval Agency | UL |
| Current - Hold (Ih) (Max) [Max] | 216 mA |
| Current - Max [Max] | 2 A |
| Current - Trip (It) | 398 mA |
| Height - Seated (Max) | 15.5 mm |
| Height - Seated (Max) [Max] | 0.61 " |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 4.7 Ohms |
| Size / Dimension [custom] | 0.157 in |
| Size / Dimension [custom] | 4 mm |
| Size / Dimension [diameter] | 9.5 mm |
| Size / Dimension [diameter] | 0.374 " |
| Type | Ceramic |
| Voltage - Max [Max] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PTGL09BD Series
Ceramic PTC Resettable Fuse 24V 216 mA Ih Through Hole Radial, Disc
