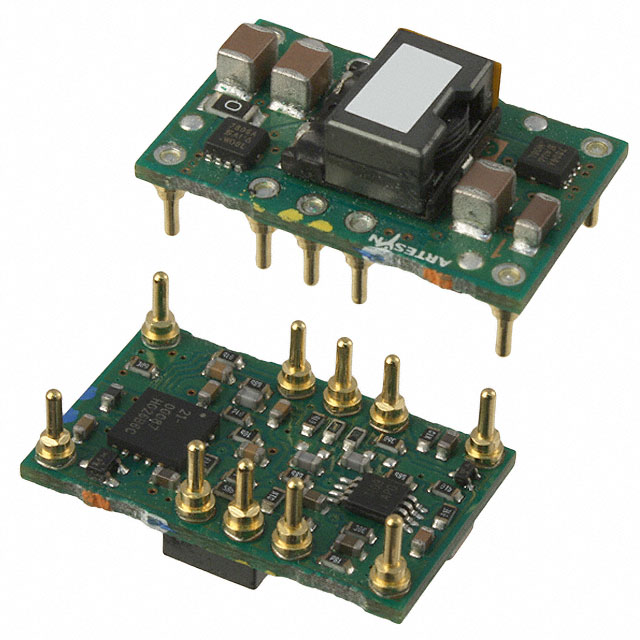

PTH12060WAD
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 1.2-5.5V 55W
Deep-Dive with AI
Search across all available documentation for this part.
PTH12060WAD
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 1.2-5.5V 55W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH12060WAD |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 94 % |
| Features | UVLO, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-DIP Module |
| Power (Watts) | 55 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 0.62 " |
| Size / Dimension [y] | 15.7 mm |
| Size / Dimension [z] | 0.35 " |
| Size / Dimension [z] | 8.9 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.79 | |
| 1 | $ 18.70 | |||
| 5 | $ 18.56 | |||
| 5 | $ 19.63 | |||
| 10 | $ 18.41 | |||
| 10 | $ 19.48 | |||
| 25 | $ 18.12 | |||
| 36 | $ 19.18 | |||
| 48 | $ 17.26 | |||
| 72 | $ 18.26 | |||
| 96 | $ 15.82 | |||
| 108 | $ 16.74 | |||
| 240 | $ 15.54 | |||
| 252 | $ 16.44 | |||
| 468 | $ 16.19 | |||
| 480 | $ 15.31 | |||
Description
General part information
PTH12060 Series
Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5V 10A 10.8V - 13.2V Input
