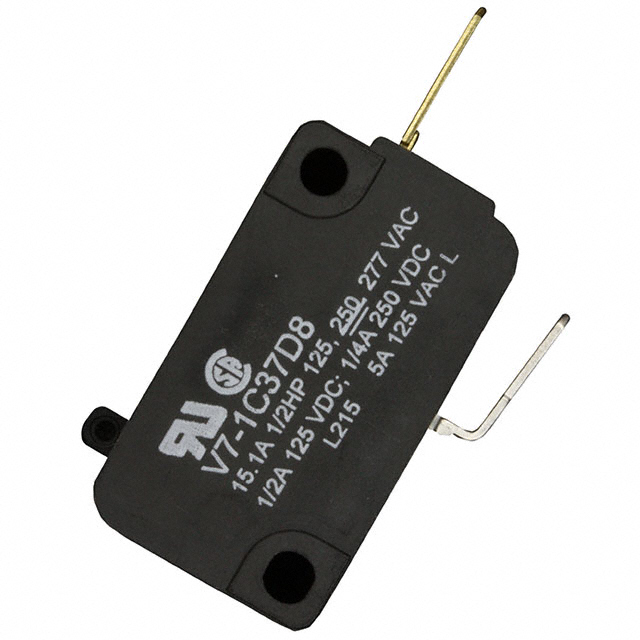

V7-1C37D8

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 15A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Termination Style	Actuator Type	Overtravel	Overtravel	Operating Position	Operating Position	Voltage Rating - AC	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Circuit	Pretravel	Pretravel	Release Force	Voltage Rating - DC	Electrical Life	Mounting Type	Switch Function	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions V7-1C37D8-000-1
Honeywell Sensing and Productivity Solutions V7-1C37D8	150 gf	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	1.27 mm	0.05 in	0.579 in	14.7 mm	125 V	10000000 Cycles	85 °C	-40 °C	15 A 500 mA	SPST-NC	0.047 in	1.2 mm	25 gf	125 VDC	100000 Cycles	Chassis Mount	On-Mom	0.25 mm	0.01 in
Honeywell Sensing and Productivity Solutions V7-1C33D855-002		Quick Connect - 0.187" (4.7mm)	Lever Straight					125 V	10000000 Cycles	85 °C	-40 °C	15 A 500 mA	SPST-NC				125 VDC		Chassis Mount	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 2.86

General part information

Switch SPST-NC Chassis Mount
