DFK-40-0003

Active

SCHURTER Inc.

CMC 6A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 6A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DFK-40-0003

Current Rating (Max) [Max]	6 A
DC Resistance (DCR) (Max) [Max]	27 mOhm
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	1.575 in
Size / Dimension [x]	40 mm
Size / Dimension [y]	1.575 in
Size / Dimension [y]	40 mm

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [custom]	DC Resistance (DCR) (Max) [Max]	Mounting Type	Current Rating (Max) [Max]	Number of Lines	Package / Case
SCHURTER Inc. DFK-40-0003	1.575 in	1.575 in	40 mm	40 mm	-25 °C 100 °C	27 mOhm	Through Hole	6 A	2	Nonstandard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

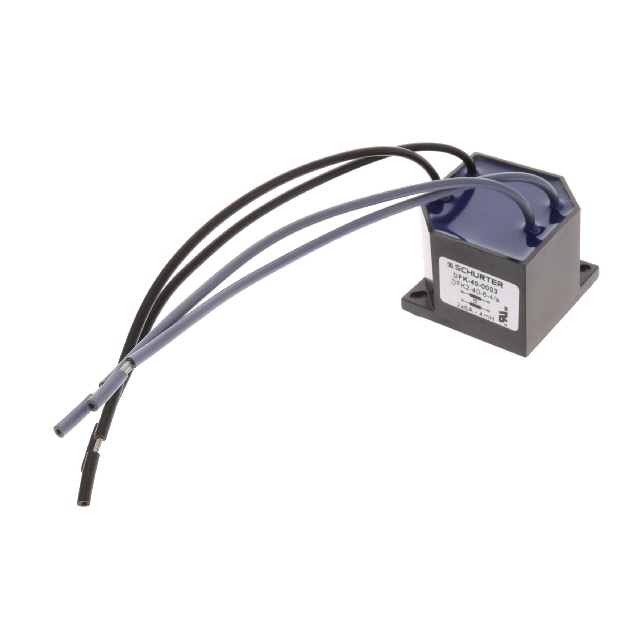

2 Line Common Mode Choke Through Hole 6A DCR 27mOhm
