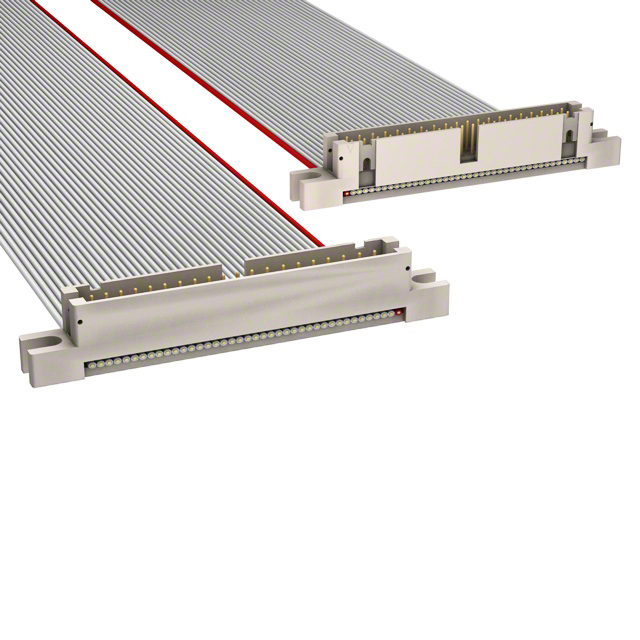

M3WWK-4036J

Active

3M (TC)

IDC CABLE - MPL40K/MC40G/MPL40K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet Datasheet +1

M3WWK-4036J

Active

3M (TC)

IDC CABLE - MPL40K/MC40G/MPL40K

Deep-Dive with AI

Documents3365 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3WWK-4036J

Cable Termination	IDC
Connector Type	Plug to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Flange, Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3WWK Series

Part	Features	Length [x]	Length [x]	Connector Type	Contact Finish	Number of Rows	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Number of Positions	Cable Termination	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Color	Length	Length	Length
3M (TC) M3WWK-1618J	Flange Polarizing Key	457.2 mm	1.5 ft	Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	16	IDC	Unshielded	0.76 Ám	30 Áin
3M (TC) M3WWK-4036J	Flange Polarizing Key	914.4 mm	3 ft	Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm		IDC	Unshielded	0.76 Ám	30 Áin	40
3M (TC) M3WWK-3606R	Flange Polarizing Key			Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm		IDC	Unshielded	0.76 Ám	30 Áin	36	Multiple Ribbon	152.4 mm	6 "	0.5 '
3M (TC) M3WWK-2040K	Flange Polarizing Key	1.02 m	3.34 ft	Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm		IDC	Unshielded	0.76 Ám	30 Áin	20	Multiple Twisted Pair (Flat)
3M (TC) M3WWK-3406J	Flange Polarizing Key			Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm		IDC	Unshielded	0.76 Ám	30 Áin	34		152.4 mm	6 "	0.5 '
3M (TC) M3WWK-1606J	Flange Polarizing Key			Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	16	IDC	Unshielded	0.76 Ám	30 Áin			152.4 mm	6 "	0.5 '
3M (TC) M3WWK-1406J	Flange Polarizing Key			Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm		IDC	Unshielded	0.76 Ám	30 Áin	14		152.4 mm	6 "	0.5 '
3M (TC) M3WWK-1006J	Flange Polarizing Key			Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm		IDC	Unshielded	0.76 Ám	30 Áin	10		152.4 mm	6 "	0.5 '
3M (TC) M3WWK-4006J	Flange Polarizing Key			Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm		IDC	Unshielded	0.76 Ám	30 Áin	40		152.4 mm	6 "	0.5 '
3M (TC) M3WWK-6440K	Flange Polarizing Key	1.02 m	3.34 ft	Plug to Plug	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm		IDC	Unshielded	0.76 Ám	30 Áin	64	Multiple Twisted Pair (Flat)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.19
		10	$ 29.52
		25	$ 26.77
		50	$ 24.91
		100	$ 23.22
		250	$ 21.24
		500	$ 19.95

Description

General part information

M3WWK Series

40 Position Cable Assembly Rectangular Plug to Plug 3.00' (914.40mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
