LIFCL-PCIEB-EVN

Active

LATTICE SEMICONDUCTOR

CROSSLINK-NX PCIE BRIDGE BOARD ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

CROSSLINK-NX PCIE BRIDGE BOARD ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	LIFCL-PCIEB-EVN

Contents	Power Supply, Cable(s), Accessories, Board(s)
For Use With/Related Products	LIFCL-40
Platform	CrossLink-NX FPGA PCIe Bridge PCIe Card
Utilized IC / Part	LIFCL-40

Part	Mounting Type	Number of LABs/CLBs	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Total RAM Bits	Number of Logic Elements/Cells	Package / Case	For Use With/Related Products	Contents	Utilized IC / Part	Platform
LATTICE SEMICONDUCTOR LIFCL-40-8MG121I	Surface Mount	9750	72	100 °C	-40 C	1.05 V	0.95 V	121-CSFBGA (6x6)	1548288 Bits	39000	121-VFBGA CSPBGA
LATTICE SEMICONDUCTOR LIFCL-40-7BG256C	Surface Mount	9750	163	85 °C	0 °C	1.05 V	0.95 V	256-CABGA (14x14)	1548288 Bits	39000	256-LFBGA
LATTICE SEMICONDUCTOR LIFCL-40-8MG121C	Surface Mount	9750	72	85 °C	0 °C	1.05 V	0.95 V	121-CSFBGA (6x6)	1548288 Bits	39000	121-VFBGA CSPBGA
LATTICE SEMICONDUCTOR LIFCL-40-7MG121C	Surface Mount	9750	72	85 °C	0 °C	1.05 V	0.95 V	121-CSFBGA (6x6)	1548288 Bits	39000	121-VFBGA CSPBGA
LATTICE SEMICONDUCTOR LIFCL-PCIEB-EVN												LIFCL-40	Accessories Board(s) Cable(s) Power Supply	LIFCL-40	CrossLink-NX FPGA PCIe Bridge PCIe Card

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 895.00
Newark	Each	1	$ 930.80

General part information

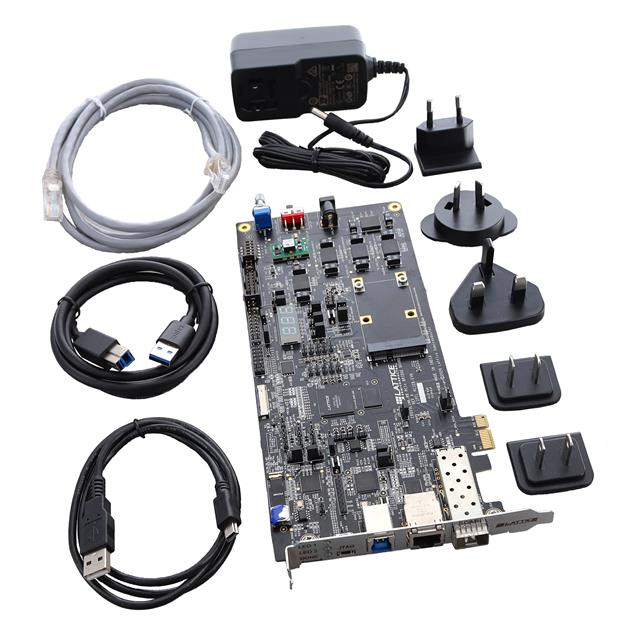

CrossLink-NX FPGA PCIe Bridge PCIe Card LIFCL-40 CrossLink-NX™ FPGA Evaluation Board

Technical documentation and resources

No documents available
