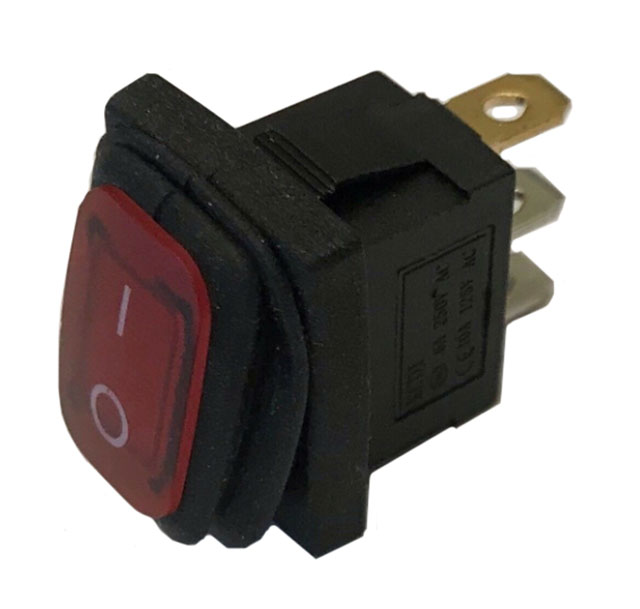

REDROCKER5V

Active

Traktronix

SWITCH ROCKER SPDT 10A 125V

Search across all available documentation for this part.

Active

Traktronix

SWITCH ROCKER SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	REDROCKER5V

Actuator Marking	O -
Actuator Type	Convex (Reverse V) - Illuminated
Circuit	SPDT
Current Rating (Amps)	10 A, 20 A
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	19.5 mm
Panel Cutout Dimensions [y]	13 mm
Switch Function	On-On
Termination Style	Quick Connect
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Part	Mounting Type	Ingress Protection	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - DC	Termination Style	Voltage Rating - AC	Switch Function	Actuator Type	Current Rating (Amps)	Circuit
Traktronix REDROCKER5V	Panel Mount Snap-In	IP65 - Dust Tight Water Resistant	LED Red	2 VDC	O -	13 mm	19.5 mm	12 V	Quick Connect	125 V	On-On	Convex (Reverse V) - Illuminated	10 A 20 A	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.99

General part information

Rocker Switch SPDT 10A (AC), 20A (DC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
