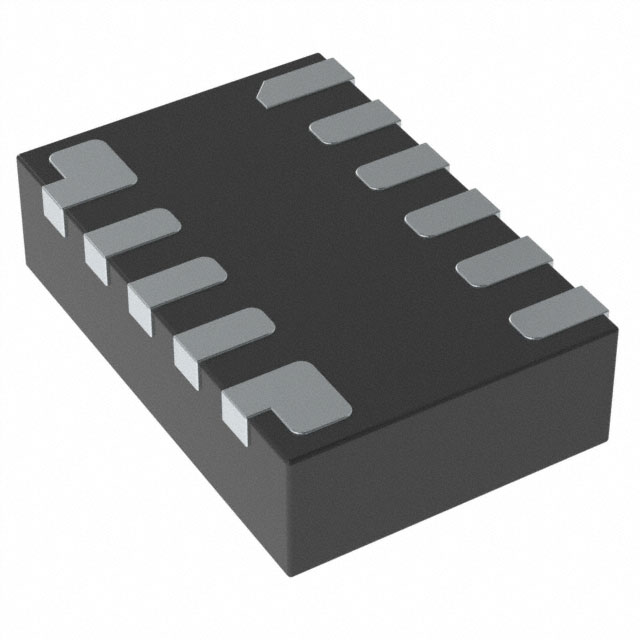

MP28164GD-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK BST ADJ 4.2A 11QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP28164GD-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK BST ADJ 4.2A 11QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP28164GD-P |
|---|---|
| Current - Output | 4.2 A |
| Frequency - Switching | 2 MHz |
| Function | Step-Up/Step-Down, Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 11-VFQFN |
| Supplier Device Package | 11-QFN (2x3) |
| Synchronous Rectifier | False |
| Topology | Boost, Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 1.2 V |
| Voltage - Output (Max) | 5 V |
| Voltage - Output (Min/Fixed) | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.19 | |
| 10 | $ 3.47 | |||
| 25 | $ 3.02 | |||
| 100 | $ 2.52 | |||
| 250 | $ 2.28 | |||
| Digi-Reel® | 1 | $ 5.19 | ||
| 10 | $ 3.47 | |||
| 25 | $ 3.02 | |||
| 100 | $ 2.52 | |||
| 250 | $ 2.28 | |||
| Tape & Reel (TR) | 500 | $ 2.13 | ||
| 1000 | $ 2.01 | |||
| 1500 | $ 1.94 | |||
| 2500 | $ 1.87 | |||
| 3500 | $ 1.83 | |||
| 5000 | $ 1.81 | |||
Description
General part information
MP28164 Series
Buck, Boost Switching Regulator IC Positive Adjustable 1.5V 1 Output 4.2A 11-VFQFN
Documents
Technical documentation and resources
