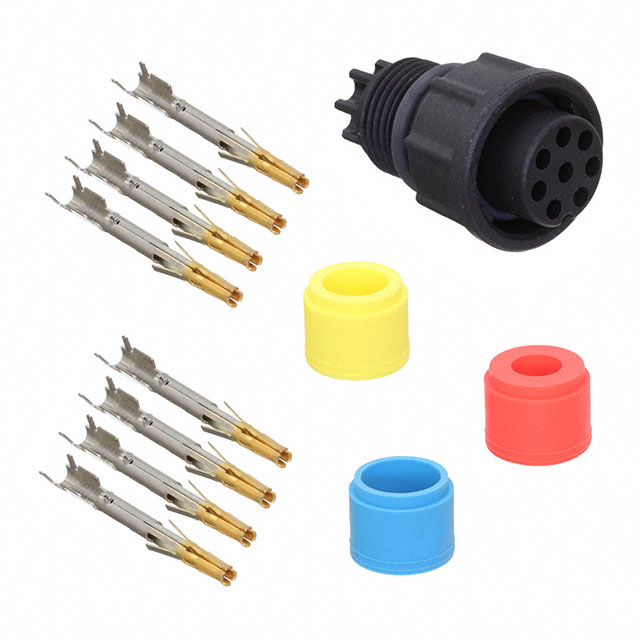

ABD-08BFFC-LL7AP0

Active

Amphenol LTW

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ABD-08BFFC-LL7AP0

Active

Amphenol LTW

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABD-08BFFC-LL7AP0

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VDC

ABD-08BFFC Series

Part	Connector Type	Number of Positions	Termination	Mounting Type	Color	Insert Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Material Flammability Rating	Orientation	Current Rating (Amps)	Shielding	Voltage Rating	Features	Ingress Protection	Contact Material	Primary Material	Contact Finish - Mating	Backshell Material, Plating	Fastening Type
Amphenol LTW ABD-08BFFC-SL7LP0	Female Sockets Plug	8	Crimp	Free Hanging (In-Line)	Black	Polyamide (PA) Nylon Glass Filled	0.394 in	8 mm	10 mm	0.315 in	B	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Keyed	5 A	Unshielded	250 VDC	Backshell	IP67 - Dust Tight Waterproof	Copper Alloy	Plastic	Gold
Amphenol LTW ABD-08BFFC-LL7SP0	Female Sockets Plug	8	Crimp	Free Hanging (In-Line)	Black	Polyamide (PA) Nylon Glass Filled	0.236 in	5 mm	6 mm	0.197 in	B	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Keyed	5 A	Unshielded	250 VDC	Backshell	IP67 - Dust Tight Waterproof	Copper Alloy	Plastic	Gold
Amphenol LTW ABD-08BFFC-LL7AP0	Female Sockets Plug	8	Crimp	Free Hanging (In-Line)	Black	Polyamide (PA) Nylon Glass Filled					B	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Keyed	5 A	Unshielded	300 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Copper Alloy	Plastic	Gold	Glass Filled Nylon Polyamide (PA)	Bayonet Lock
Amphenol LTW ABD-08BFFC-SL7MP0	Female Sockets Plug	8	Crimp	Free Hanging (In-Line)	Black	Polyamide (PA) Nylon Glass Filled	0.315 in	6 mm	8 mm	0.236 in	B	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Keyed	5 A	Unshielded	250 VDC	Backshell	IP67 - Dust Tight Waterproof	Copper Alloy	Plastic	Gold
Amphenol LTW ABD-08BFFC-SL7AP0	Female Sockets Plug	8	Crimp	Free Hanging (In-Line)	Black	Polyamide (PA) Nylon Glass Filled					B	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Keyed	5 A	Unshielded	300 VDC	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Copper Alloy	Plastic	Gold	Glass Filled Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.66
		10	$ 8.18
		25	$ 7.39
		50	$ 6.85
		100	$ 6.37
		250	$ 5.80
		500	$ 5.41
		1000	$ 5.06

Description

General part information

ABD-08BFFC Series

8 (Data) Position Circular Connector Plug, Female Sockets Crimp
