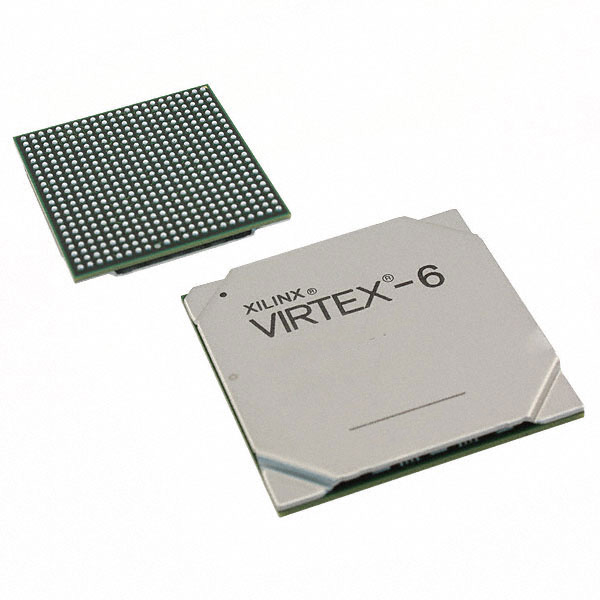

XC6VSX315T-1FF1759I

Active

AMD

IC FPGA 720 I/O 1759FCBGA

Search across all available documentation for this part.

Active

AMD

IC FPGA 720 I/O 1759FCBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XC6VSX315T-1FF1759I

Mounting Type	Surface Mount
Number of I/O	720
Number of LABs/CLBs	24600
Number of Logic Elements/Cells	314880
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	FCBGA, 1759-BBGA
Supplier Device Package	1759-FCBGA
Supplier Device Package [x]	42.5
Supplier Device Package [y]	42.5
Total RAM Bits	25952256 bits
Voltage - Supply [Max]	1.05 V
Voltage - Supply [Min]	0.95 V

Part	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of LABs/CLBs	Number of I/O	Number of Logic Elements/Cells	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Total RAM Bits	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]
AMD XC6VSX315T-1FF1759I	1759-BBGA FCBGA	1.05 V	0.95 V	24600	720	314880	Surface Mount	100 °C	-40 C	25952256 bits	42.5	1759-FCBGA	42.5
AMD XC6VSX315T-3FFG1759C	1759-BBGA FCBGA	1.05 V	0.95 V	24600	720	314880	Surface Mount	85 °C	0 °C	25952256 bits	42.5	1759-FCBGA	42.5
AMD XC6VSX315T-2FFG1759C	1759-BBGA FCBGA	1.05 V	0.95 V	24600	720	314880	Surface Mount	85 °C	0 °C	25952256 bits	42.5	1759-FCBGA	42.5
AMD XC6VSX315T-1FFG1759I	1759-BBGA FCBGA	1.05 V	0.95 V	24600	720	314880	Surface Mount	100 °C	-40 C	25952256 bits	42.5	1759-FCBGA	42.5
AMD XC6VSX315T-2FFG1156I	1156-BBGA FCBGA	1.05 V	0.95 V	24600	600	314880	Surface Mount	100 °C	-40 C	25952256 bits		1156-FCBGA (35x35)
AMD XC6VSX315T-1FFG1759C	1759-BBGA FCBGA	1.05 V	0.95 V	24600	720	314880	Surface Mount	85 °C	0 °C	25952256 bits	42.5	1759-FCBGA	42.5
AMD XC6VSX315T-2FF1759I	1759-BBGA FCBGA	1.05 V	0.95 V	24600	720	314880	Surface Mount	100 °C	-40 C	25952256 bits	42.5	1759-FCBGA	42.5
AMD XC6VSX315T-1FF1156I	1156-BBGA FCBGA	1.05 V	0.95 V	24600	600	314880	Surface Mount	100 °C	-40 C	25952256 bits		1156-FCBGA (35x35)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8992.50

General part information

Virtex®-6 SXT Field Programmable Gate Array (FPGA) IC 720 25952256 314880 1759-BBGA, FCBGA
