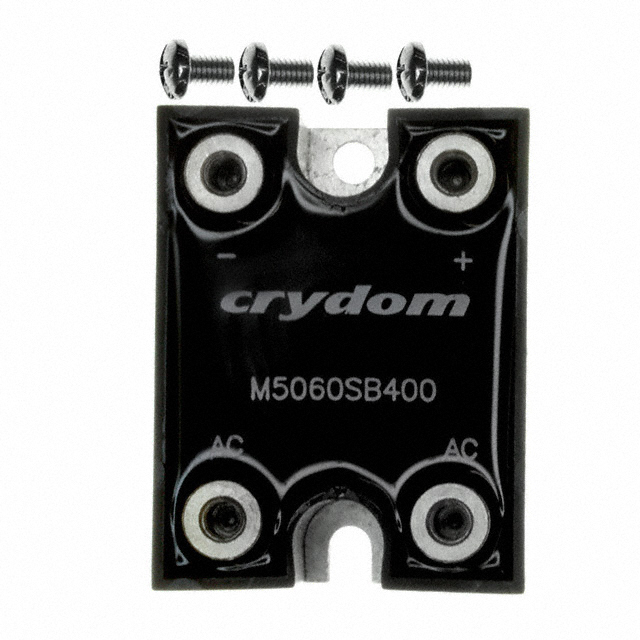

M5060SB400

Active

Sensata-Crydom

BRIDGE RECT 1P 400V 60A MODULE

Search across all available documentation for this part.

Active

Sensata-Crydom

BRIDGE RECT 1P 400V 60A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	M5060SB400

Current - Average Rectified (Io)	60 A
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.35 V
Voltage - Peak Reverse (Max) [Max]	400 V

Part	Technology	Diode Type	Mounting Type	Supplier Device Package	Current - Average Rectified (Io)	Package / Case	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max)
Sensata-Crydom M5060SB400	Standard	Single Phase	Chassis Mount	Module	60 A	Module	400 V	-40 °C	125 ¯C	1.35 V
Sensata-Crydom M5060SB1600	Standard	Single Phase	Chassis Mount	Module	60 A	Module		-40 °C	125 ¯C	1.35 V	1.6 kV
Sensata-Crydom M5060TB1000	Standard	Three Phase	Chassis Mount	Module	60 A	Module	1000 V	-40 °C	125 ¯C	1.35 V
Sensata-Crydom M5060TB600	Standard	Three Phase	Chassis Mount	Module	60 A	Module	600 V	-40 °C	125 ¯C	1.35 V
Sensata-Crydom M5060TB1200	Standard	Three Phase	Chassis Mount	Module	60 A	Module	1.2 kV	-40 °C	125 ¯C	1.35 V
Sensata-Crydom M5060SB600	Standard	Single Phase	Chassis Mount	Module	60 A	Module	600 V	-40 °C	125 ¯C	1.35 V
Sensata-Crydom M5060TB1600	Standard	Three Phase	Chassis Mount	Module	60 A	Module		-40 °C	125 ¯C	1.35 V	1.6 kV
