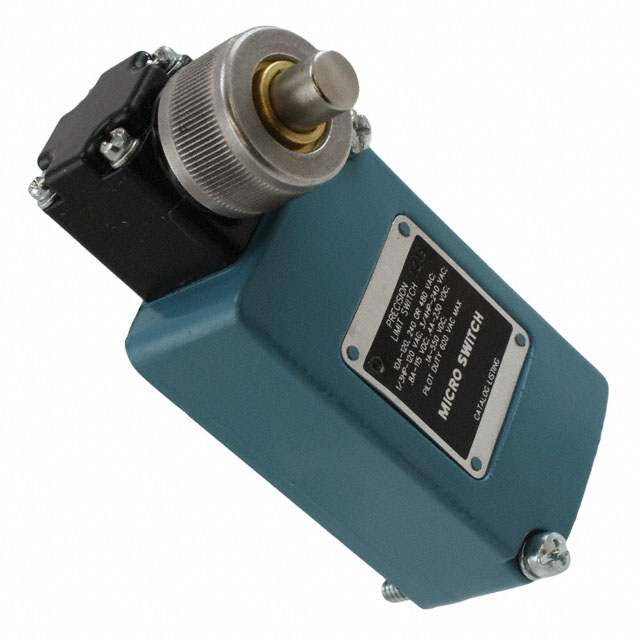

204LS1
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
204LS1
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 10A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 204LS1 |
|---|---|
| Actuator Type | Side Plunger |
| Circuit | SPDT (DB/DM) |
| Current Rating (Amps) | 10 A, 800 mA |
| Differential Travel | 1 mm |
| Differential Travel | 0.04 in |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Operating Force | 4082 gf |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -29 °C |
| Overtravel | 6.35 mm |
| Overtravel | 0.25 in |
| Pretravel | 0.11 in |
| Pretravel | 2.8 mm |
| Release Force | 907 gf |
| Switch Function | On-Mom |
| Termination Style | Plug In |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
204LS Series
Switch SPDT (DB/DM) Chassis Mount
