ADO300-48S12-6LI

Active

ARTESYN / Advanced Energy

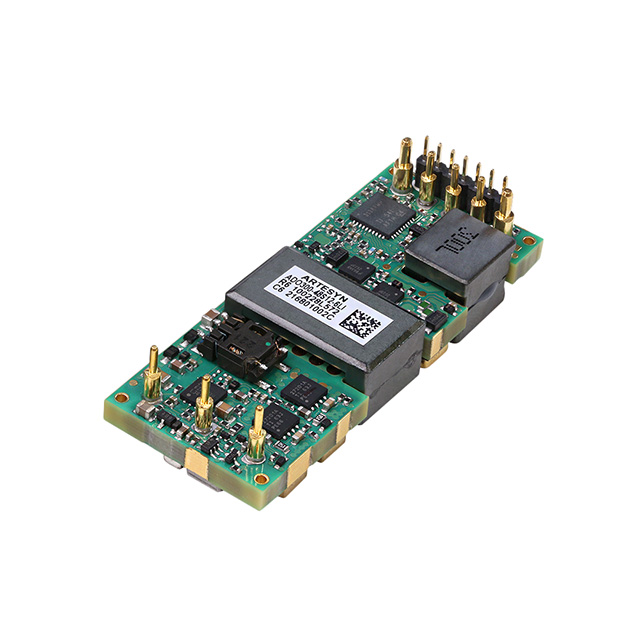

DC DC CONVERTER 11.77V 306W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsADO300-48S12 Technical Ref Note Digital DC-DC Power Module Brochure

ADO300-48S12-6LI

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 11.77V 306W

Deep-Dive with AI

DocumentsADO300-48S12 Technical Ref Note Digital DC-DC Power Module Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADO300-48S12-6LI

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	26 A
Efficiency	95.2 %
Features	OVP, OCP, OTP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Eighth Brick
Power (Watts)	306 W
Size / Dimension [x]	58.7 mm
Size / Dimension [x]	2.31 in
Size / Dimension [y]	23.2 mm
Size / Dimension [y]	0.91 in
Size / Dimension [z]	0.44 "
Size / Dimension [z]	11.2 mm
Supplier Device Package	Eighth Brick
Type	Isolated Module, Digital
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	11.77 V

ADO300 Series

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Number of Outputs	Supplier Device Package	Power (Watts)	Applications	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Control Features	Features	Voltage - Input (Max) [Max]	Package / Case	Efficiency	Size / Dimension [y]	Size / Dimension [z]
ARTESYN / Advanced Energy ADO300-48S12-6LI	0.44 "	23.2 mm	11.2 mm	0.91 in	58.7 mm	2.31 in	85 °C	-40 °C	Isolated Module Digital	Through Hole	1	Eighth Brick	306 W	ITE (Commercial)	11.77 V	26 A	36 V	1.5 kV	Active Low Enable	OCP OTP OVP Remote On/Off	75 V	Eighth Brick	95.2 %
ARTESYN / Advanced Energy ADO300-48S05-6L	0.44 "	23.2 mm	11.2 mm	0.91 in	58.7 mm	2.31 in	85 °C	-40 °C	Isolated Module Digital	Through Hole	1	Eighth Brick	300 W	ITE (Commercial)	5 V	60 A	36 V	1.5 kV	Active Low Enable	OCP OTP OVP Remote On/Off	75 V	Eighth Brick	94.6 %
ARTESYN / Advanced Energy ADO300-48S12B-6L	0.53 "			0.91 in	58.7 mm	2.31 in	85 °C	-40 °C	Isolated Module Digital	Through Hole	1	Eighth Brick	306 W	ITE (Commercial)	11.77 V	26 A	36 V	1.5 kV	Active Low Enable	OCP OTP OVP Remote On/Off	75 V	Eighth Brick	95.2 %	23.2 mm	13.5 mm
ARTESYN / Advanced Energy ADO300-48S3V3B-6L	0.53 "			0.91 in	58.7 mm	2.31 in	85 °C	-40 °C	Isolated Module Digital	Through Hole	1	Eighth Brick	198 W	ITE (Commercial)	3.3 V	60 A	36 V	1.5 kV	Active Low Enable	OCP OTP OVP Remote On/Off	75 V	Eighth Brick	93 %	23.2 mm	13.5 mm
ARTESYN / Advanced Energy ADO300-48S05B-6L	0.53 "			0.91 in	58.7 mm	2.31 in	85 °C	-40 °C	Isolated Module Digital	Through Hole	1	Eighth Brick	300 W	ITE (Commercial)	5 V	60 A	36 V	1.5 kV	Active Low Enable	OCP OTP OVP Remote On/Off	75 V	Eighth Brick	94.6 %	23.2 mm	13.5 mm
ARTESYN / Advanced Energy ADO300-48S12-6L	0.44 "	23.2 mm	11.2 mm	0.91 in	58.7 mm	2.31 in	85 °C	-40 °C	Isolated Module Digital	Through Hole	1	Eighth Brick	306 W	ITE (Commercial)	11.77 V	26 A	36 V	1.5 kV	Active Low Enable	OCP OTP OVP Remote On/Off	75 V	Eighth Brick	95.2 %
