2EDN7523GXTMA1
ActiveInfineon Technologies
IC GATE DRVR LOW-SIDE 8WSON
Deep-Dive with AI
Search across all available documentation for this part.
2EDN7523GXTMA1
ActiveInfineon Technologies
IC GATE DRVR LOW-SIDE 8WSON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2EDN7523GXTMA1 |
|---|---|
| Channel Type | Independent |
| Current - Peak Output (Source, Sink) [custom] | 5 A |
| Current - Peak Output (Source, Sink) [custom] | 5 A |
| Driven Configuration | Low-Side |
| Gate Type | N-Channel MOSFET |
| Input Type | Inverting |
| Mounting Type | Surface Mount |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-WDFN Exposed Pad |
| Rise / Fall Time (Typ) [custom] | 4.5 ns |
| Rise / Fall Time (Typ) [custom] | 5.3 ns |
| Supplier Device Package | PG-WSON-8-1 |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.27 | |
| 10 | $ 1.14 | |||
| 25 | $ 1.08 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.58 | |||
| Digi-Reel® | 1 | $ 1.27 | ||
| 10 | $ 1.14 | |||
| 25 | $ 1.08 | |||
| 100 | $ 0.89 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.58 | |||
| Tape & Reel (TR) | 4000 | $ 0.54 | ||
| 8000 | $ 0.51 | |||
| 12000 | $ 0.49 | |||
Description
General part information
2EDN7523 Series

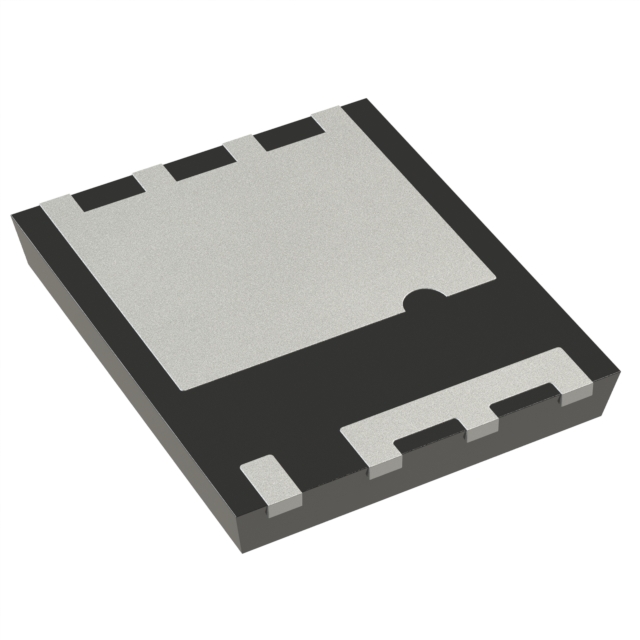

Low-Side Gate Driver IC Inverting PG-WSON-8-1
