ED100/8DS
ActiveOn Shore Technology Inc.

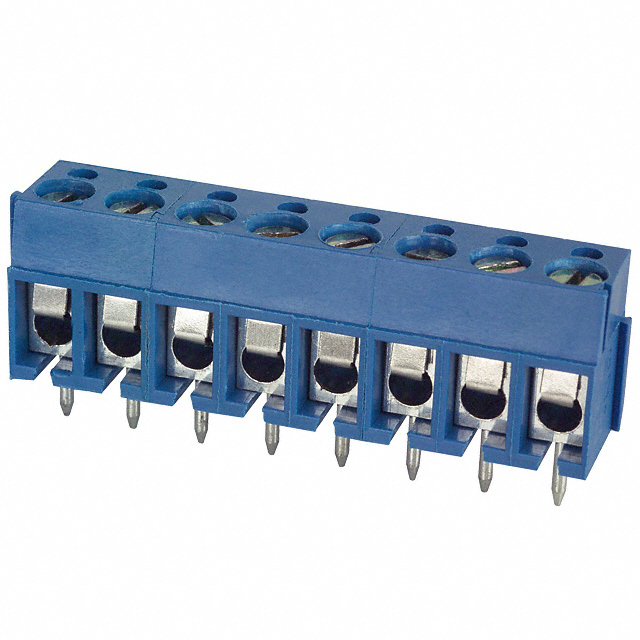

TERM BLK 8POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ED100/8DS
ActiveOn Shore Technology Inc.
TERM BLK 8POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ED100/8DS |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Blue |
| Current | 15 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 8 |
| Screw Thread | M3 |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.92 | |
| 50 | $ 1.84 | |||
| 100 | $ 1.80 | |||
| 1000 | $ 1.30 | |||
| 5000 | $ 1.14 | |||
Description
General part information
ED100 Series
8 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
