51K156-K00N5

Active

Rosenberger

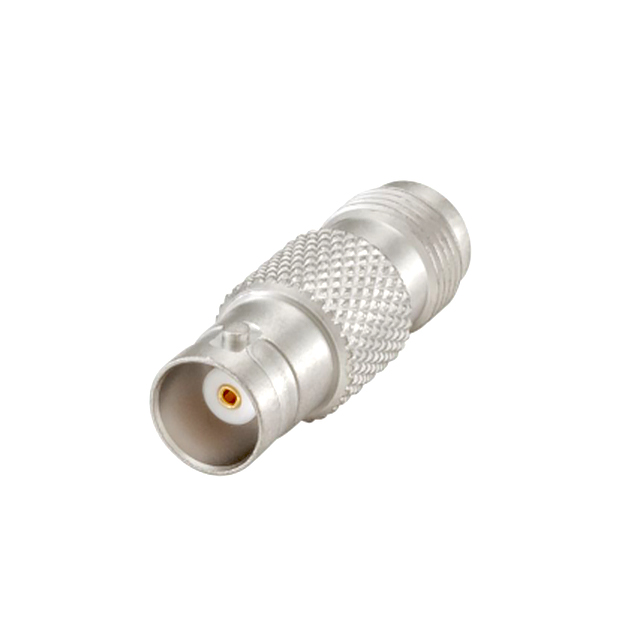

ADAPT BNC JACK - TNC JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT BNC JACK - TNC JACK

Technical Specifications

Parameters and characteristics for this part

Specification	51K156-K00N5

Adapter Series	BNC to TNC
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, TNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Adapter Series	Style	Convert From (Adapter End)	Adapter Type	Dielectric Material	Mating Cycles	Fastening Type	Frequency - Max [Max]	Body Finish	Impedance	Body Material	Center Contact Plating	Mounting Type	Center Contact Material	Conversion Type	Center Gender	Convert To (Adapter End)
Rosenberger 51K156-K00N5	BNC to TNC	Straight	BNC Jack Female Socket	Jack to Jack	Polytetrafluoroethylene (PTFE)	500	Bayonet Lock Threaded	10 GHz	White Bronze	50 Ohms	Brass	Gold	Free Hanging (In-Line)	Bronze	Between Series	Female to Female	Female Socket TNC Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	13	$ 63.43

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
