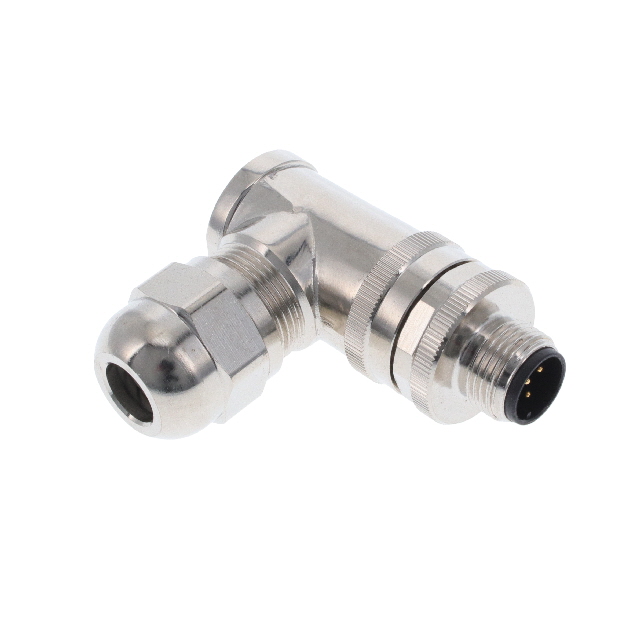

T4113511051-000

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 5POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIndustrial M8 & M12 Series Circular connector M12 connection application specification +1

T4113511051-000

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 5POS GOLD SCREW

Deep-Dive with AI

DocumentsIndustrial M8 & M12 Series Circular connector M12 connection application specification +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T4113511051-000

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Zinc Alloy
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Screw
Voltage Rating	60 VDC

T41135 Series

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Insert Material	Termination	Orientation	Contact Material	Backshell Material, Plating	Number of Positions	Shell Material	Color	Voltage Rating	Shielding	Contact Finish - Mating	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Applications	Current Rating (Amps)	Ingress Protection	Shell Finish	Shell Size - Insert	Features	Cable Opening [diameter]	Cable Opening [diameter]
TE Connectivity Raychem Cable Protection T4113512021-000	Male Pins Receptacle	85 °C	-40 °C	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Screw	D	Brass	Brass Nickel	2	Brass	Silver	250 VDC	Shielded	Gold	Metal	3 µin	0.076 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-2	Backshell
TE Connectivity Raychem Cable Protection T4113501031-000	Male Pins Receptacle	85 °C	-40 °C					Nylon Polyamide (PA)	Screw	D	Brass	Glass Filled Polybutylene Terephthalate (PBT)		Brass	Black Silver	250 VDC	Unshielded	Gold	Metal	3 µin	0.076 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-3	Backshell	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113502042-000	Male Pins Receptacle	85 °C	-40 °C	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Screw	D	Brass	Glass Filled Polybutylene Terephthalate (PBT)	4	Brass	Black Silver	250 VDC	Unshielded	Silver	Metal	80 µin	2.03 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-4	Backshell
TE Connectivity Raychem Cable Protection T4113511051-000	Male Pins Receptacle	85 °C	-40 °C					Nylon Polyamide (PA)	Screw	D	Zinc Alloy	Brass Nickel		Brass	Silver	60 VDC	Shielded	Gold	Metal	3 µin	0.076 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-5	Backshell	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113502051-000	Male Pins Receptacle	85 °C	-40 °C	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Screw	D	Zinc Alloy	Glass Filled Polybutylene Terephthalate (PBT)		Brass	Black Silver	60 VDC	Unshielded	Gold	Metal	3 µin	0.076 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-5	Backshell
TE Connectivity Raychem Cable Protection T4113501051-000	Male Pins Receptacle	85 °C	-40 °C					Nylon Polyamide (PA)	Screw	D	Zinc Alloy	Glass Filled Polybutylene Terephthalate (PBT)		Brass	Black Silver	60 VDC	Unshielded	Gold	Metal	3 µin	0.076 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-5	Backshell	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113511032-000	Male Pins Receptacle	85 °C	-40 °C					Nylon Polyamide (PA)	Screw	D	Brass	Brass Nickel		Brass	Silver	250 VDC	Shielded	Silver	Metal	80 µin	2.03 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-3	Backshell	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113502021-000	Male Pins Receptacle	85 °C	-40 °C	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Screw	D	Brass	Glass Filled Polybutylene Terephthalate (PBT)	2	Brass	Black Silver	250 VDC	Unshielded	Gold	Metal	3 µin	0.076 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-2	Backshell
TE Connectivity Raychem Cable Protection T4113501021-000	Male Pins Receptacle	85 °C	-40 °C					Nylon Polyamide (PA)	Screw	D	Brass	Glass Filled Polybutylene Terephthalate (PBT)	2	Brass	Black Silver	250 VDC	Unshielded	Gold	Metal	3 µin	0.076 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-2	Backshell	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4113512032-000	Male Pins Receptacle	85 °C	-40 °C	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Screw	D	Brass	Brass Nickel		Brass	Silver	250 VDC	Shielded	Silver	Metal	80 µin	2.03 µm	Free Hanging (In-Line) Right Angle	Industrial	4 A	IP67 - Dust Tight Waterproof	Nickel	M12-3	Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.21
		10	$ 5.41
		25	$ 5.27
		50	$ 5.12
		100	$ 5.01

Description

General part information

T41135 Series

5 Position Circular Connector Receptacle, Male Pins Screw

Documents

Technical documentation and resources

Industrial M8 & M12 Series Circular connector

Datasheet

M12 connection application specification

Datasheet
