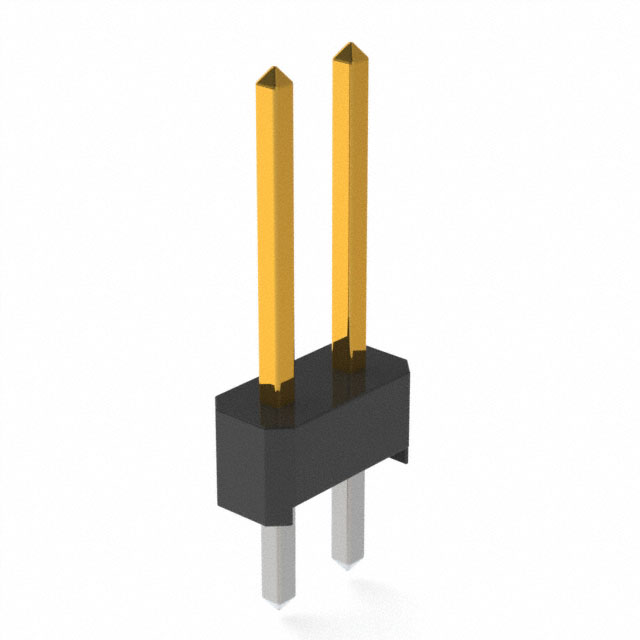

2302-6221-TG

Active

3M (TC)

CONN HEADER VERT 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2302-6221-TG

Active

3M (TC)

CONN HEADER VERT 2POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2302-6221-TG

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.538 "
Overall Contact Length	13.67 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

2302 Series

Part	Contact Finish - Mating	Current Rating (Amps)	Contact Shape	Style	Mounting Type	Number of Rows	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Termination	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Fastening Type	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Length - Mating
3M (TC) 2302-6221-TG	Gold	3 A	Square	Board to Board Cable	Through Hole	2	All	0.12 in	3.05 mm	Copper Alloy	Solder	0.538 "	13.67 mm	Header	2.54 µm	100 µin	2	Black	10 çin	0.25 çm	Tin-Lead	0.318 "	8.08 mm	UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin	2.54 mm	0.1 in
3M (TC) 2302-6211-TG	Gold	3 A	Square	Board to Board Cable	Through Hole	1	All	0.12 in	3.05 mm	Copper Alloy	Solder	0.538 "	13.67 mm	Header	2.54 Ąm 2.54 µm	100 Ąin 100 µin	2	Black	10 çin 10 Ąin	0.25 çm 0.25 Ąm	Tin-Lead	0.318 "	8.08 mm	UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm
3M (TC) 2302-5211-TG	Gold	3 A	Square	Board to Board Cable	Through Hole Right Angle	1	All	0.12 in	3.05 mm	Copper Alloy	Solder			Header	2.54 µm	100 µin	2	Black	10 çin	0.25 çm	Tin-Lead	0.318 "	8.08 mm	UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm
3M (TC) 2302-6111-TP	Tin-Lead	3 A	Square	Board to Board Cable	Through Hole	1	All	0.12 in	3.05 mm	Copper Alloy	Solder	0.45 "	11.43 mm	Header	2.54 µm	100 µin	2	Black			Tin-Lead	0.23 in		UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm	5.84 mm
3M (TC) 2302-6111-TG	Gold	3 A	Square	Board to Board Cable	Through Hole	1	All	0.12 in	3.05 mm	Copper Alloy	Solder	0.45 "	11.43 mm	Header	2.54 µm	100 µin	2	Black	10 çin	0.25 çm	Tin-Lead	0.23 in		UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm	5.84 mm
3M (TC) 2302-5111-TG	Gold	3 A	Square	Board to Board Cable	Through Hole Right Angle	1	All	0.12 in	3.05 mm	Copper Alloy	Solder			Header	2.54 µm	100 µin	2	Black	10 çin	0.25 çm	Tin-Lead	0.23 in		UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.23
		10	$ 0.19
		100	$ 0.15
		500	$ 0.12
		1000	$ 0.10
		5000	$ 0.09
		10000	$ 0.08

Description

General part information

2302 Series

Connector Header Through Hole 2 position
