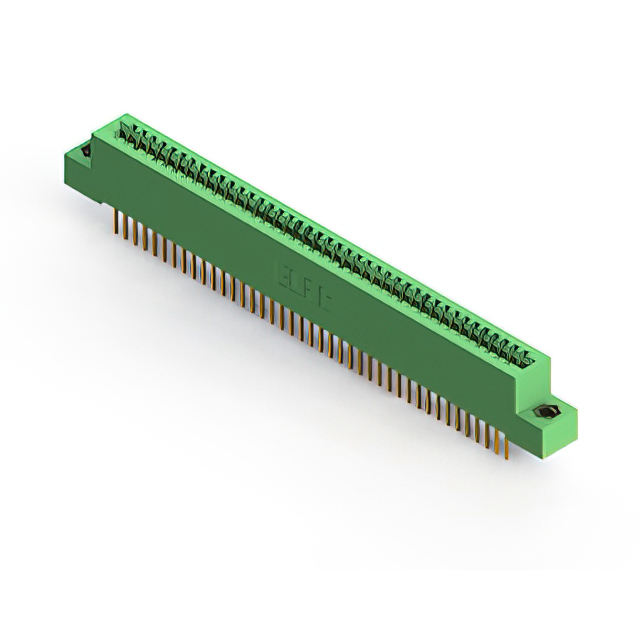

842-082-541-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 82POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

842-082-541-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 82POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	842-082-541-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	82
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

842-082 Series

Part	Contact Finish	Mounting Type	Contact Type	Color	Material - Insulation	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Card Type	Contact Material	Termination	Number of Positions	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Features
EDAC Inc. 842-082-559-204	Gold	Through Hole Right Angle	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Solder	82	Female	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual
EDAC Inc. 842-082-555-208	Gold	Board Edge Straddle Mount	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Solder	82	Female		4-40 Flush Mount Threaded Insert Top Opening		Dual	Card Extender
EDAC Inc. 842-082-544-201	Gold	Through Hole	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Wire Wrap	82	Female				Dual
EDAC Inc. 842-082-524-204	Gold	Through Hole	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Solder	82	Female	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual
EDAC Inc. 842-082-541-201	Gold	Through Hole	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Wire Wrap	82	Female				Dual
EDAC Inc. 842-082-541-207	Gold	Through Hole	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Wire Wrap	82	Female		Flush Mount M3 Threaded Insert Top Opening		Dual
EDAC Inc. 842-082-560-201	Gold	Board Edge Straddle Mount	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Solder	82	Female				Dual	Card Extender
EDAC Inc. 842-082-556-204	Gold	Board Edge Straddle Mount	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Solder	82	Female	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual	Card Extender
EDAC Inc. 842-082-520-202	Gold	Through Hole	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Solder	82	Female	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Dual
EDAC Inc. 842-082-521-204	Gold	Through Hole	Cantilever	Green	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	10 Áin	0.25 Ám	2	Non Specified - Dual Edge	Copper Alloy	Solder	82	Female	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 105.60

Description

General part information

842-082 Series

82 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
