SURA8240T3G

Obsolete

ON Semiconductor

POWER RECTIFIER, ULTRA-FAST RECOVERY, 2 A, 400 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

SURA8240T3G

Obsolete

ON Semiconductor

POWER RECTIFIER, ULTRA-FAST RECOVERY, 2 A, 400 V

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SURA8240T3G

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C

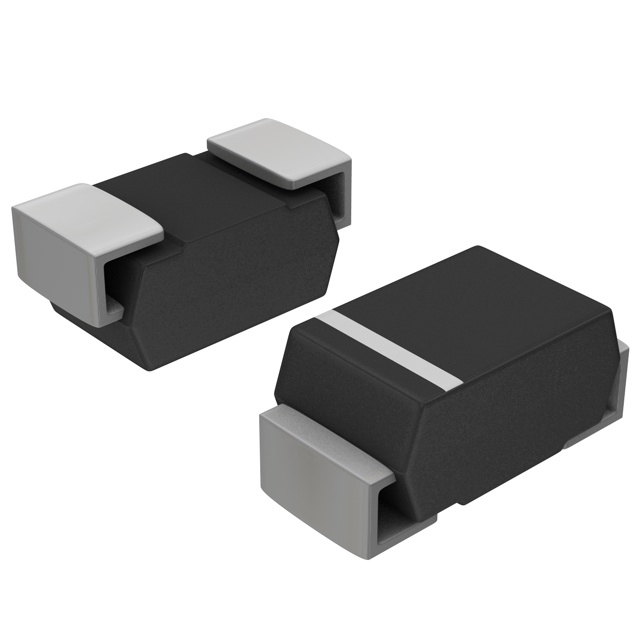

Package / Case	DO-214AC, SMA
Reverse Recovery Time (trr)	65 ns
Speed	200 mA, 500 ns
Supplier Device Package	SMA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

SURA8240 Series

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Qualification	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Package / Case	Speed	Technology	Reverse Recovery Time (trr)	Grade
ON Semiconductor SURA8240T3G-VF01	400 V	Surface Mount	175 ░C	-65 C	SMA	AEC-Q101	1.3 V	5 µA	2 A	DO-214AC SMA	200 mA 500 ns	Standard	65 ns	Automotive
ON Semiconductor SURA8240T3G	400 V	Surface Mount	175 ░C	-65 C	SMA		1.3 V	5 µA	2 A	DO-214AC SMA	200 mA 500 ns	Standard	65 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SURA8240 Series

The Ultrafast Power Rectifier is ideally suited for high voltage, high frequency rectification or as free wheeling and protection diodes in surface mount applications, where compact size and weight are critical to the system.
