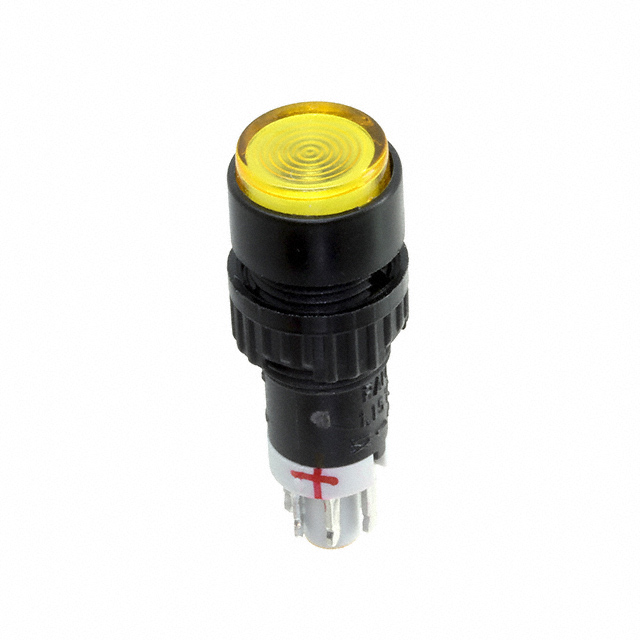

1.15.106.505/1000

Active

RAFI USA

SWITCH PUSH 1NO 1NC 500MA 24V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSH 1NO 1NC 500MA 24V

Technical Specifications

Parameters and characteristics for this part

Specification	1.15.106.505/1000

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST-NO/NC
Color - Actuator/Cap	Clear
Current Rating (Amps)	500 mA
Electrical Life	200000 Cycles
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP40
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	9.1 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	24 V
Voltage Rating - DC	24 V

Part	Actuator Marking	Voltage Rating - AC	Current Rating (Amps)	Voltage Rating - DC	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Electrical Life	Illumination Type, Color	Switch Function	Ingress Protection	Actuator Type	Circuit	Type	Panel Cutout Dimensions [diameter]	Termination Style	Mounting Type	Mechanical Life
RAFI USA 1.15.106.505/1000	No Marking	24 V	500 mA	24 V	2 VDC	70 °C	-25 °C	Clear	200000 Cycles	LED White	Off-Mom On-Mom	IP40	Button Round	DPST-NO/NC	Illuminated Standard	9.1 mm	Solder Lug	Panel Mount Front	200000 Cycles
RAFI USA 1.15.106.301/0410	No Marking	24 V	500 mA	24 V		70 °C	-25 °C	Yellow	200000 Cycles		Off-Mom On-Mom	IP40	Button Round	DPST-NO/NC	Standard	9.1 mm	Solder Lug	Panel Mount Front	200000 Cycles
RAFI USA 1.15.106.501/1300	No Marking	24 V	500 mA	24 V	2 VDC	70 °C	-25 °C	Clear (Red Filter/Diffuser)	200000 Cycles	LED Red	Off-Mom On-Mom	IP40	Button Round	DPST-NO/NC	Illuminated Standard	9.1 mm	Solder Lug	Panel Mount Front	200000 Cycles
RAFI USA 1.15.106.301/0518	No Marking	24 V	500 mA	24 V		70 °C	-25 °C	Green	200000 Cycles		Off-Mom On-Mom	IP40	Button Round	DPST-NO/NC	Standard	9.1 mm	Solder Lug	Panel Mount Front	200000 Cycles
RAFI USA 1.15.106.301/0214	No Marking	24 V	500 mA	24 V		70 °C	-25 °C	White	200000 Cycles		Off-Mom On-Mom	IP40	Button Round	DPST-NO/NC	Standard	9.1 mm	Solder Lug	Panel Mount Front	200000 Cycles
RAFI USA 1.15.106.301/0313	No Marking	24 V	500 mA	24 V		70 °C	-25 °C	Red	200000 Cycles		Off-Mom On-Mom	IP40	Button Round	DPST-NO/NC	Standard	9.1 mm	Solder Lug	Panel Mount Front	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 25.10

General part information

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
