2202631

Obsolete

Phoenix Contact

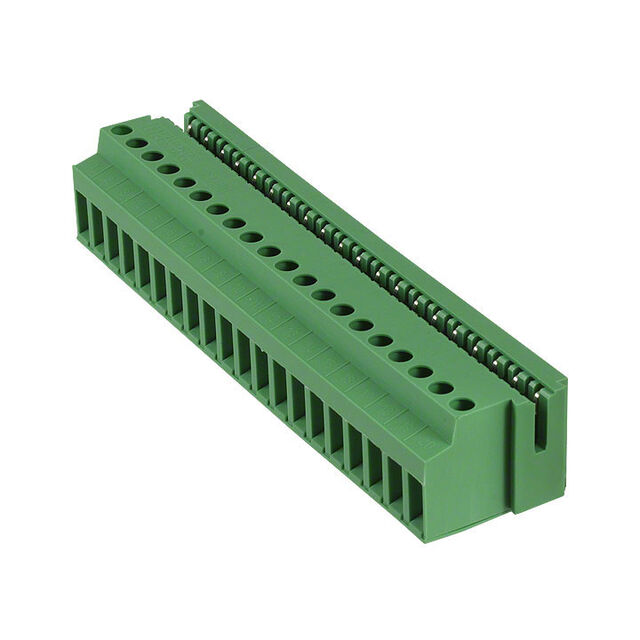

PLUG-IN CARD BLOCK 5MM 20POS

Search across all available documentation for this part.

Obsolete

Phoenix Contact

PLUG-IN CARD BLOCK 5MM 20POS

Technical Specifications

Parameters and characteristics for this part

Specification	2202631

Convert From (Adapter End)	Terminal Blocks, Screw Connection, 1 Row, 20 Pos
Convert To (Adapter End)	20 Pos
Convert To (Adapter End)	Card Edge Connector
Mounting Type	Board Mounted
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	14 AWG

Part	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]	Convert From (Adapter End)	Convert From (Adapter End)
Phoenix Contact 2202631	Board Mounted	20 Pos	Card Edge Connector	14 AWG	30 AWG	1 Row 20 Pos Screw Connection Terminal Blocks
Phoenix Contact 2202505	Board Mounted	20 Pos	Card Edge Connector			1 Row 20 Pos Screw Connection Terminal Blocks
Phoenix Contact 2202592	Board Mounted	14 Pos	Card Edge Connector	14 AWG	30 AWG	Screw Connection Terminal Blocks	1 14 Pos
Phoenix Contact 2202615	Board Mounted	16 Pos	Card Edge Connector	14 AWG	30 AWG	Screw Connection Terminal Blocks	1 16
Phoenix Contact 2202563	Board Mounted			14 AWG	30 AWG	1 Row 10 Pos Screw Connection Terminal Blocks
Phoenix Contact 2202547	Board Mounted		Card Edge Connector 8 Pos	14 AWG	30 AWG	Screw Connection Terminal Blocks	1 8 Pos

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Terminal Blocks, Screw Connection, 20 Pos, 1 Row To Card Edge Connector, 20 Pos

Technical documentation and resources

No documents available
