Q-0402C0005003i

Active

Amphenol Custom Cable

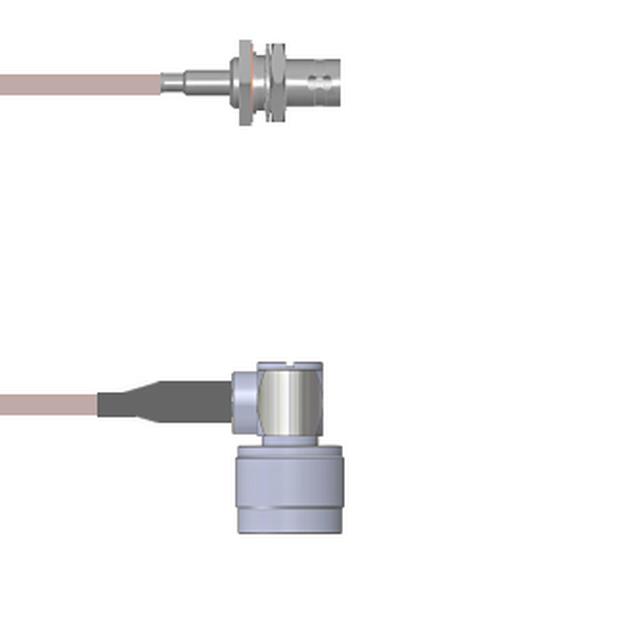

CBL ASSY BNC-NTYPE JACK-PLUG 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0402C0005003i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-PLUG 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0402C0005003i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0402C0 Series

Part	2nd Connector Mounting Type	1st Contact Gender	Features	Style	1st Connector Mounting Feature	2nd Contact Gender	Overall Impedance	Color	Cable Type	1st Connector	Frequency - Max [Max]	1st Connector Mounting Type	Length	Length	Length	2nd Connector	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0402C0003072i	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Black	RG-174	BNC Jack	4 GHz	Panel Mount	6 ft	72 in	1.8 m	N-Type Plug Right Angle
Amphenol Custom Cable Q-0402C0003.25M	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Black	RG-174	BNC Jack	4 GHz	Panel Mount				N-Type Plug Right Angle	9.843 "	250 mm
Amphenol Custom Cable Q-0402C0005002M	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Copper	RG-316	BNC Jack	4 GHz	Panel Mount	6.6 ft	78.7 in	2 m	N-Type Plug Right Angle
Amphenol Custom Cable Q-0402C0005006i	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Copper	RG-316	BNC Jack	4 GHz	Panel Mount		6 in	152.4 mm	N-Type Plug Right Angle
Amphenol Custom Cable Q-0402C0003048i	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Black	RG-174	BNC Jack	4 GHz	Panel Mount	4 ft	48 in	1200 mm	N-Type Plug Right Angle
Amphenol Custom Cable Q-0402C0005003i	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Copper	RG-316	BNC Jack	4 GHz	Panel Mount		3 in	76.2 mm	N-Type Plug Right Angle
Amphenol Custom Cable Q-0402C0005001M	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Copper	RG-316	BNC Jack	4 GHz	Panel Mount	3.3 ft	39.4 in	1 m	N-Type Plug Right Angle
Amphenol Custom Cable Q-0402C0003018i	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Black	RG-174	BNC Jack	4 GHz	Panel Mount				N-Type Plug Right Angle		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0402C0003.75M	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Black	RG-174	BNC Jack	4 GHz	Panel Mount		29.53 "	750 mm	N-Type Plug Right Angle
Amphenol Custom Cable Q-0402C0005084i	Free Hanging (In-Line)	Female	Shielded	BNC to N-Type	Bulkhead - Front Side Nut	Male	50 Ohms	Copper	RG-316	BNC Jack	4 GHz	Panel Mount	7 ft	84 in	2.1 m	N-Type Plug Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 71.83
		25	$ 70.44
		50	$ 69.05
		100	$ 67.66
		250	$ 66.27

Description

General part information

Q-0402C0 Series

Cable Assembly Coaxial BNC to N-Type RG-316 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
