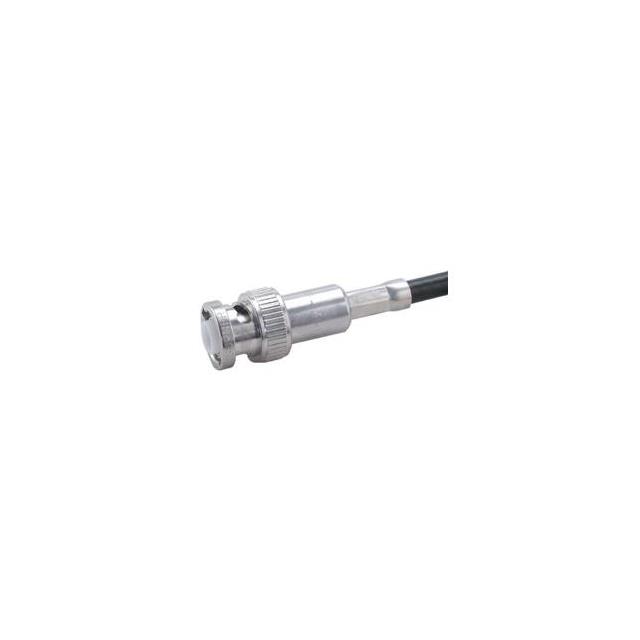

11_H4-50-4-4/133_NE

Active

Huber+Suhner, Inc.

11_H4-50-4-4/133_NE

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

11_H4-50-4-4/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	11_H4-50-4-4/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-59
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	H4
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	300 MHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Body Finish	Center Contact Plating	Impedance	Center Contact Material	Fastening Type	Number of Ports	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Cable Group	Body Material	Housing Color	Frequency - Max [Max]	Shield Termination	Connector Style	Dielectric Material	Contact Termination
Huber+Suhner, Inc. 11_H4-50-4-4/133_NE	White Bronze	Gold	50 Ohms	Brass	Bayonet Lock	1	Free Hanging (In-Line)	-65 ░C	165 °C	Male Pin Plug	RG-59	Brass	Silver	300 MHz	Crimp	H4	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 43.03

General part information

H4 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
