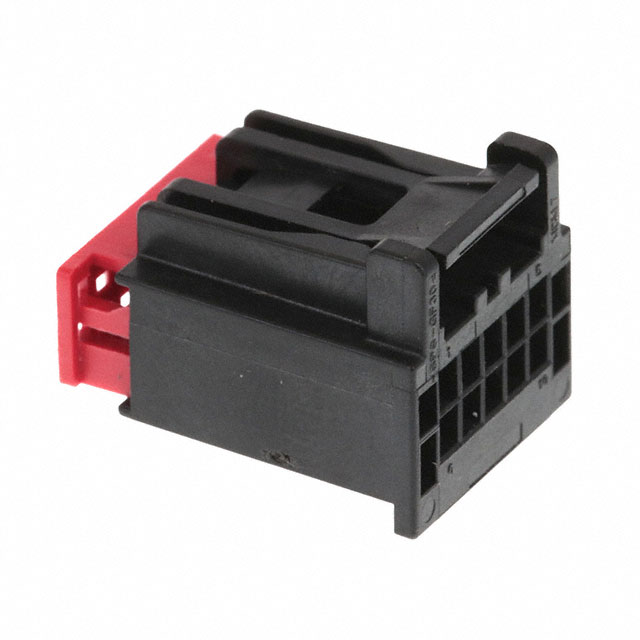

CONN RCPT HSG 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0307001101 - 0307001101

0307001101

Active

Molex

CONN RCPT HSG 10POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0307001101

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Terminal Position Lock (TPA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.02
		10	$ 0.87
		100	$ 0.72
		1200	$ 0.67

Description

General part information

030700 Series

10 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

030700 Series

...

Part	Insulation Color	Contact Length - Post	Contact Length - Post	Mated Stacking Heights	Features	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Number of Positions	Number of Positions Loaded	Contact Type	Number of Rows	Contact Material	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Shrouding	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Post	Style	Mounting Type	Applications	Connector Type	Contact Shape	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Note	Contact Termination	Color
Molex 0307004120	Gray	0.145 in	3.68 mm	26.22 mm	Board Guide	Solder	2.54 mm	0.1 in	0.311 in	7.9 mm	12	All	Male Pin	2	Copper Alloy	0.692 in	17.58 mm	21.69 mm	0.854 "	Shrouded - 4 Wall	0.1 in	2.54 mm	Latch Holder	Tin	Board to Cable/Wire	Through Hole	Automotive	Header	Square
Molex 0307001189					Terminal Position Lock (TPA)						18		Female Socket	2									Latch Holder			Free Hanging (In-Line)		Receptacle		0.1 in	2.54 mm	2.54 mm	0.1 in	100 °C	-40 °C	Contacts Not Included	Crimp	Natural
Molex 0307005066
Molex 0307004086
Molex 0307004189
Molex 0307005086
Molex 0307005064
Molex 0307001101					Terminal Position Lock (TPA)						10		Female Socket	2									Latch Holder			Free Hanging (In-Line)		Receptacle		0.1 in	2.54 mm	2.54 mm	0.1 in	100 °C	-40 °C	Contacts Not Included	Crimp	Black
