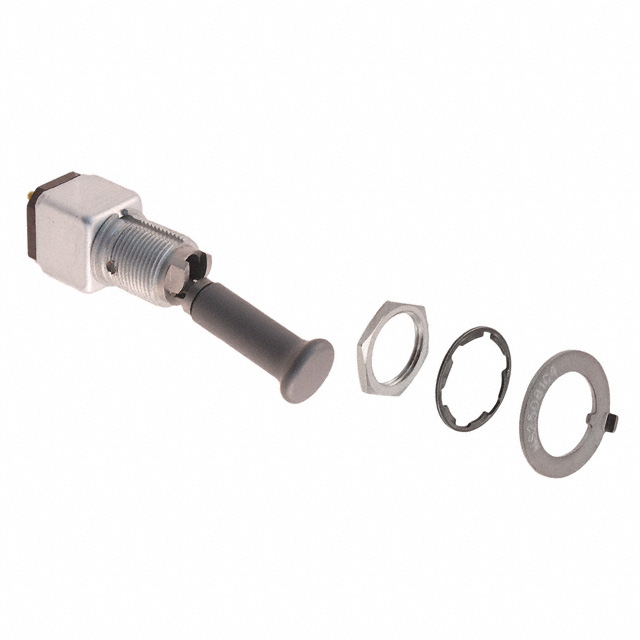

12TW1-3F

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Micro-Toggle Switch, Line Guide

12TW1-3F

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet Micro-Toggle Switch, Line Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	12TW1-3F

Actuator Length [x]	29.46 mm
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	5 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-On
Termination Style	Solder Turret
Voltage Rating - AC	125 V

12TW1 Series

Part	Bushing Thread	Current Rating (Amps)	Ingress Protection	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Actuator Type	Circuit	Switch Function	Termination Style	Features
Honeywell Sensing and Productivity Solutions 12TW1-3G	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	29.46 mm	71 °C	-65 ░C	Non-Illuminated	Locking Lever	DPDT	On-On	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW1-3F	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	29.46 mm	71 °C	-65 ░C	Non-Illuminated	Locking Lever	DPDT	On-On	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW1-2	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	17.27 mm	71 °C	-65 ░C	Non-Illuminated	Standard Round	DPST	On-Off	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW1-56	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	17.27 mm	71 °C	-65 ░C	Non-Illuminated	Standard Round	DPDT	On-On-Mom	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW13-3D	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	20.83 mm	71 °C	-65 ░C	Non-Illuminated	Locking Lever	DPDT	On-On	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW19-70-A002	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	1 in	71 °C	-65 ░C	Non-Illuminated	Flatted	DPDT	Mom-On-Mom	Solder Turret	Black Actuator
Honeywell Sensing and Productivity Solutions 12TW1-1A	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	29.46 mm	71 °C	-65 ░C	Non-Illuminated	Locking Lever	DPDT	On-Off-On	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW19-3-A002	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	1 in	71 °C	-65 ░C	Non-Illuminated	Flatted	DPDT	On-On	Solder Turret	Black Actuator
Honeywell Sensing and Productivity Solutions 12TW1-8	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	29.46 mm	71 °C	-65 ░C	Non-Illuminated	Standard Round	DPDT	On-Mom	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW1-3D	15/32-32	5 A	Environment Sealed	125 V	12.4 mm	29.46 mm	71 °C	-65 ░C	Non-Illuminated	Locking Lever	DPDT	On-On	Solder Turret

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 142.40
