7029-3541

Active

Amphenol SV Microwave

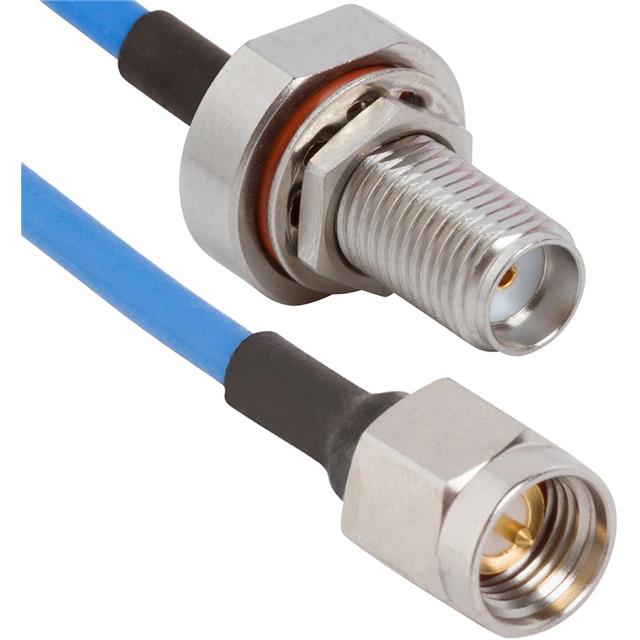

CBL ASSY SMA JACK TO PLUG 6"

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CBL ASSY SMA JACK TO PLUG 6"

Technical Specifications

Parameters and characteristics for this part

Specification	7029-3541

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	0.086 "
Cable Type	Semi-Rigid Cable
Color	Blue
Features	Shielded
Frequency - Max [Max]	18 GHz
Length	152.4 mm
Length	6 in
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	SMA to SMA

Part	2nd Connector	1st Contact Gender	Cable Type	Cable Type	1st Connector Mounting Type	Style	Length	Length	Frequency - Max [Max]	1st Connector	Overall Impedance	Features	Operating Temperature [Min]	Operating Temperature [Max]	2nd Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Feature	Color
Amphenol SV Microwave 7029-3541	SMA Plug	Female	0.086 "	Semi-Rigid Cable	Panel Mount	SMA to SMA	152.4 mm	6 in	18 GHz	SMA Jack	50 Ohms	Shielded	-65 ░C	165 °C	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Blue
Amphenol SV Microwave 7029-3580	SMA Plug	Female	0.085 "		Panel Mount	SMA to SMA	152.4 mm	6 in	18 GHz	SMA Jack	50 Ohms	Shielded	-65 ░C	165 °C	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Silver
Amphenol SV Microwave 7029-3579	SMA Plug	Female		0.047" Flexible Cable	Panel Mount	SMA to SMA	152.4 mm	6 in	18 GHz	SMA Jack	50 Ohms	Shielded	-65 ░C	165 °C	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA 0.086" Semi-Rigid Cable 6.000" (152.40mm)
