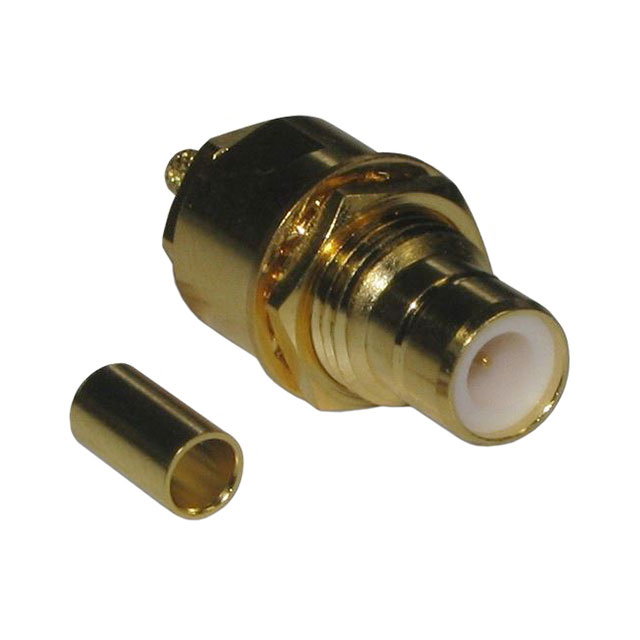

CONN SMZ JACK STR 75 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
142111
ActiveAmphenol RF
CONN SMZ JACK STR 75 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 142111 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | 179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMZ (Type 43) |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Includes | 1 pcs, 1, 2 pcs, 1 pcs, 1 pcs, 1, 1 pcs |
| Insertion Loss | 0.3 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
1421 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Connector Type | Cable Group | Shield Termination | Frequency - Max [Max] | Connector Style | Fastening Type | Mating Cycles | Contact Termination | Insertion Loss | Voltage Rating | Number of Ports | Impedance | Includes | Center Contact Material | Housing Color | Center Contact Plating | Dielectric Material | Body Finish | Body Material | Includes | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 165 °C | -55 °C | Bulkhead - Front Side Nut | Jack Male Pin | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | Crimp | 4 GHz | SMZ (Type 43) | Snap-On | 500 | Solder | 0.3 dB | 335 V | 1 | 75 Ohms | 1 pcs 1 1 pcs 1 pcs 1 1 pcs 2 pcs | Brass | Gold | Gold | Polytetrafluoroethylene (PTFE) | Gold | Brass | ||
Amphenol RF | 165 °C | -65 ░C | Female Socket Plug | 178A 178B 196 196A M17/93-RG178 RG-178 | Crimp | 4 GHz | SMB | Snap-On | 500 | Solder | 0.6 dB | 335 V | 1 | 50 Ohms | Beryllium Copper | Gold | Gold | Polytetrafluoroethylene (PTFE) | Gold | Brass | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink | Free Hanging (In-Line) Right Angle | ||
Amphenol RF | 165 °C | -65 ░C | Flange | Male Pin Receptacle | Solder | 4 GHz | SMB | Snap-On | 500 | Solder Cup | 0.3 dB | 335 V | 1 | 50 Ohms | Brass | Gold | Gold | Polytetrafluoroethylene (PTFE) | Gold | Brass | ||||
Amphenol RF | 165 °C | -65 ░C | Female Socket Plug | 188 316 Double Braid M17/152-RD316 RG-179 | Crimp | 4 GHz | SMB | Snap-On | 500 | Solder | 0.3 dB | 335 V | 1 | 50 Ohms | Phosphor Bronze | Silver | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Brass | Free Hanging (In-Line) | |||
Amphenol RF | 165 °C | -65 ░C | Female Socket Plug | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | Crimp | 4 GHz | SMZ (Type 43) | Snap-On | 500 | Solder | 0.3 dB | 335 V | 1 | 75 Ohms | Beryllium Copper | Gold | Gold | Polytetrafluoroethylene (PTFE) | Gold | Brass | Free Hanging (In-Line) | |||
Amphenol RF | 165 °C | -65 ░C | Bulkhead - Rear Side Nut | Jack Male Pin | Solder | 4 GHz | SMB | Snap-On | 500 | Solder Cup | 0.3 dB | 335 V | 1 | 50 Ohms | Brass | Gold | Gold | Polytetrafluoroethylene (PTFE) | Gold | Brass | 1 Connector 1 Lockwasher 1 Nut | |||
Amphenol RF | 165 °C | -65 ░C | Jack Male Pin | Solder | 4 GHz | SMB | Snap-On | 500 | Solder | 0.6 dB | 335 V | 1 | 50 Ohms | Brass | Silver | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Brass | Through Hole Right Angle | ||||
Amphenol RF | 165 °C | -65 ░C | Female Socket Plug | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Crimp | 4 GHz | SMB | Snap-On | 500 | Solder | 0.6 dB | 335 V | 1 | 50 Ohms | Beryllium Copper | Gold | Gold | Polytetrafluoroethylene (PTFE) | Gold | Brass | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink | Free Hanging (In-Line) Right Angle | ||
Amphenol RF | 165 °C | -65 ░C | Jack Male Pin | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | Crimp | 4 GHz | SMB | Snap-On | 500 | Crimp | 0.3 dB | 335 V | 1 | 50 Ohms | Brass | Silver | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Brass | Free Hanging (In-Line) | |||
Amphenol RF | 165 °C | -65 ░C | Male Pin Receptacle | Solder | 4 GHz | SMB | Snap-On | 500 | Solder | 0.3 dB | 335 V | 1 | 50 Ohms | Brass | Silver | Gold | Polytetrafluoroethylene (PTFE) | Nickel | Brass | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1421 Series
SMZ (Type 43) Connector Jack, Male Pin 75 Ohms Panel Mount Solder
