KP CSLNM1.F1-7N6P-A-0-1000-R18

Active

ams-OSRAM USA INC.

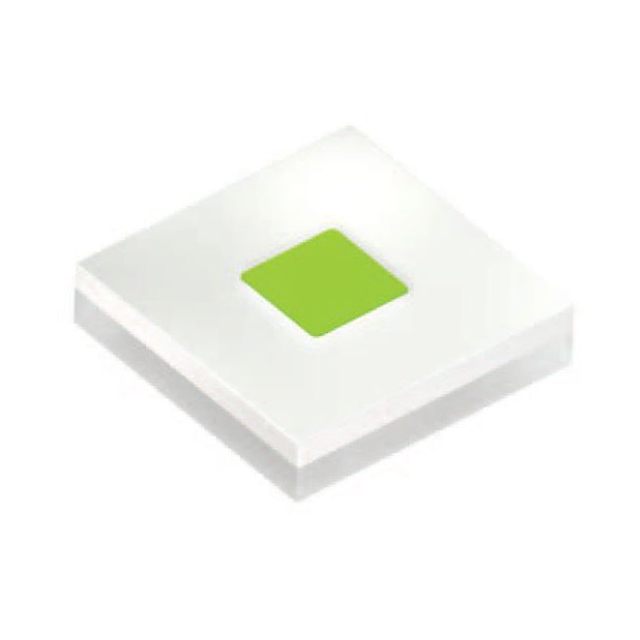

LED OSRAM OSTAR GREEN SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED OSRAM OSTAR GREEN SMD

Technical Specifications

Parameters and characteristics for this part

Specification	KP CSLNM1.F1-7N6P-A-0-1000-R18

Color	Green
Current - Max [Max]	3 A
Current - Test	1 A
Height - Seated (Max) [Max] [z]	0.84 mm
Height - Seated (Max) [Max] [z]	0.033 "
Lumens/Watt @ Current - Test	130 lm/W
Luminous Flux @ Current/Temperature	390 lm
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	SMD
Thermal Resistance of Package	4.1 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3 V

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Viewing Angle	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Current - Max [Max]	Package / Case	Package / Case	Color	Mounting Type	Thermal Resistance of Package	Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)
ams-OSRAM USA INC. KP CSLNM1.F1-7N6P-A-0-1000-R18	0.118 in	3 mm	3 mm	0.118 in	120 °	SMD	0.84 mm	0.033 "	130 lm/W	3 A	1212	3030 Metric	Green	Surface Mount	4.1 °C/W	1 A	390 lm	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color OSRAM OSTAR Green 1212 (3030 Metric)
