PJ14126L
ActiveHammond Manufacturing

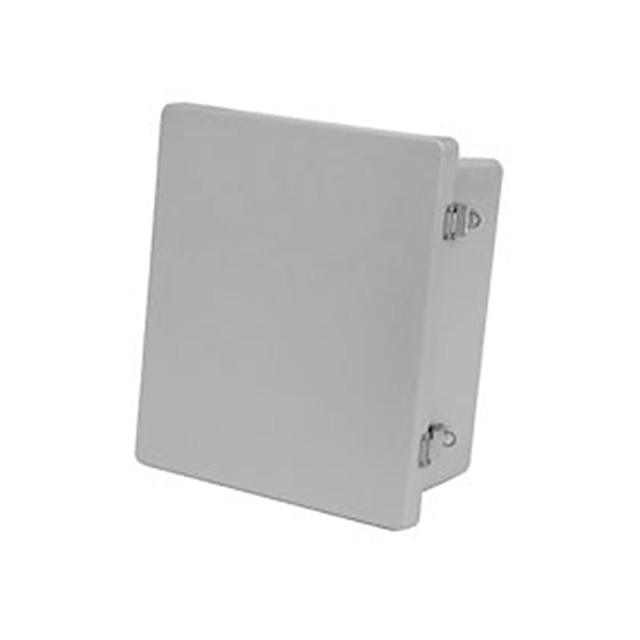

BOX FIBERGLASS 14.13"L X 12.24"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsEnclosure Overview
PJ14126L
ActiveHammond Manufacturing
BOX FIBERGLASS 14.13"L X 12.24"W
Deep-Dive with AI
DocumentsEnclosure Overview
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ14126L |
|---|---|
| Area (L x W) | 1406 cm² |
| Area (L x W) | 218 in² |
| Color | Gray |
| Container Type | Box |
| Design | Hinged Door, Lid |
| Features | Stainless Steel Hinges, Snap Latch |
| Height [z] | 156 mm |
| Height [z] | 6.142 in |
| Material | Fiberglass/Polyester |
| Ratings | UL-508, NEMA 12, NEMA 3, NEMA 4, NEMA 13, NEMA 4X, IP66, NEMA 1, NEMA 2 |
| Size / Dimension [x] | 14.134 in |
| Size / Dimension [x] | 359 mm |
| Size / Dimension [y] | 311 mm |
| Size / Dimension [y] | 12.244 in |
| Weight | 11 lbs |
| Weight | 5 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 194.62 | |
| 5 | $ 166.44 | |||
Description
General part information
PJ14126 Series
Box Fiberglass/Polyester Gray Hinged Door, Lid 14.134" L x 12.244" W (359.00mm x 311.00mm) X 6.142" (156.00mm)
