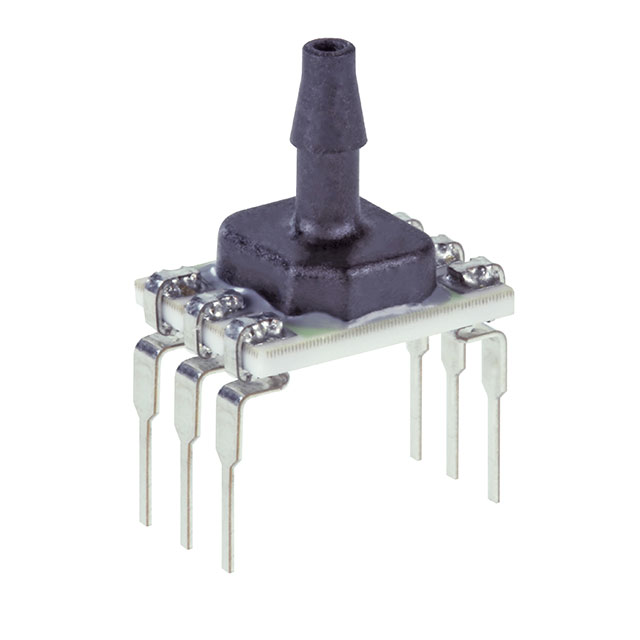

ABPDANT015PGAA5

Active

Honeywell Sensing and Productivity Solutions

SENSOR 15PSIG 0.08" 4.5V 6DIP

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 15PSIG 0.08" 4.5V 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ABPDANT015PGAA5

Accuracy	0.25 %
Applications	Medical Ventilation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	250 PSI
Maximum Pressure [Max]	1723.69 kPa
Mounting Type	Through Hole
Operating Pressure [custom]	15 PSI
Operating Pressure [custom]	103.42 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	6-DIP Module
Port Size	Male
Port Size [x]	1.93 mm
Port Size [x]	0.08 "
Port Style	Barbed
Pressure Type	Vented Gauge
Supplier Device Package	6-DIP
Termination Style	PC Pin

Part	Features	Operating Pressure [custom]	Operating Pressure [custom]	Port Style	Output [Min]	Output [Max]	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Termination Style	Applications	Supplier Device Package	Port Size [x]	Port Size	Port Size [x]	Package / Case	Pressure Type	Mounting Type
Honeywell Sensing and Productivity Solutions ABPDANT015PGAA5	Amplified Output Temperature Compensated	15 PSI	103.42 kPa	Barbed	0.5 V	4.5 V	Analog Voltage	250 PSI	1723.69 kPa	85 °C	-40 °C	0.25 %	PC Pin	Medical Ventilation	6-DIP	1.93 mm	Male	0.08 "	6-DIP Module	Vented Gauge	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.08" (1.93mm) Tube 0.5 V ~ 4.5 V 6-DIP Module
