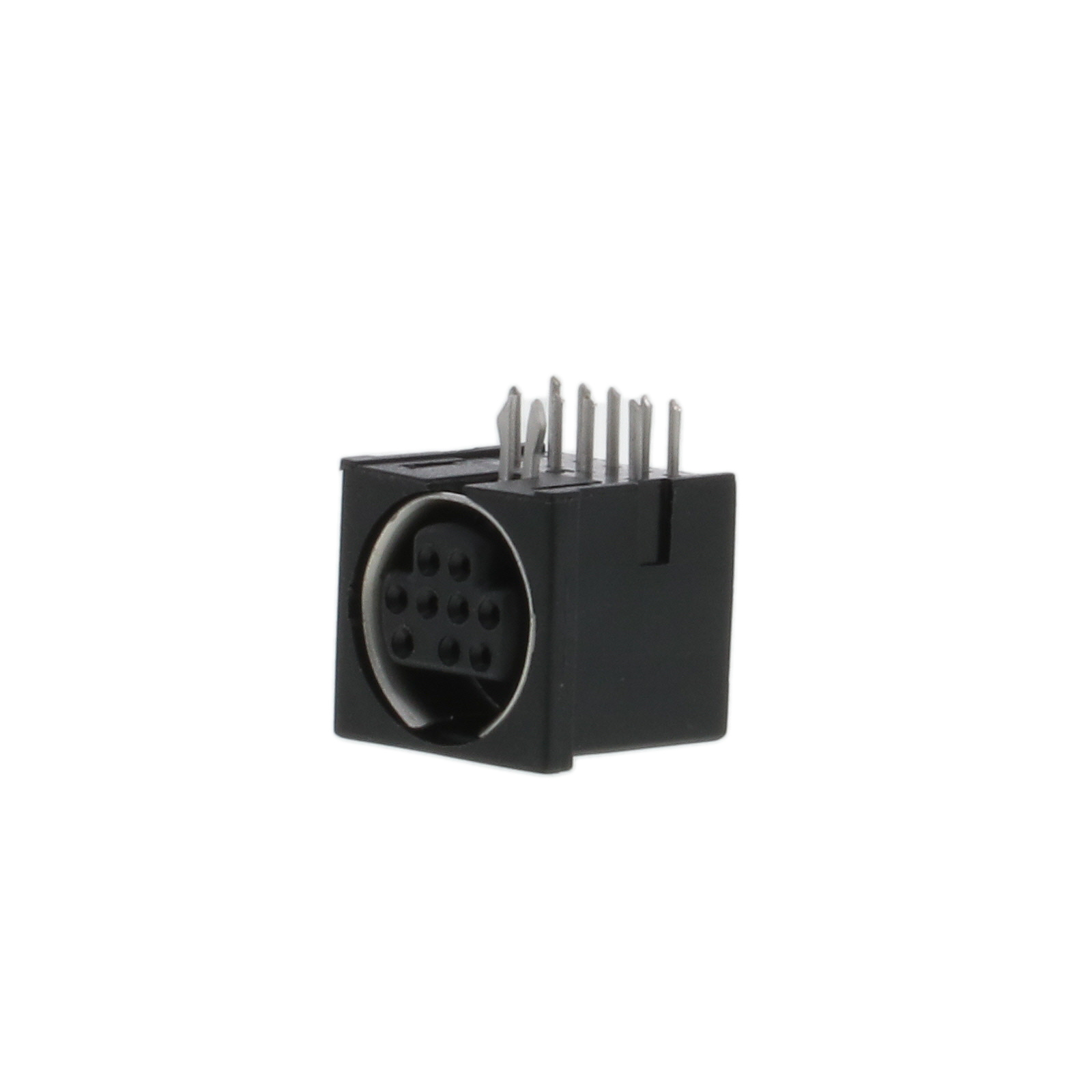

KMDGX-9S-N

Active

Kycon, Inc.

CIRCULAR DIN CONNECTORS 9P R/A MINI-DIN SKT

Search across all available documentation for this part.

Active

Kycon, Inc.

CIRCULAR DIN CONNECTORS 9P R/A MINI-DIN SKT

Technical Specifications

Parameters and characteristics for this part

Specification	KMDGX-9S-N

Applications	Video, Audio
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Insert Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	Mini DIN
Shielding	Unshielded
Termination	Solder
Voltage Rating	12 V

Circular DIN Connectors MINI-DIN PANEL MNT 4P SNAP&LOCK 500 W

Part	Shielding	Connector Type	Termination	Mounting Type	Insert Material	Color	Fastening Type	Contact Finish Thickness - Mating	Applications	Contact Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shell Size - Insert	Shell Material	Number of Positions	Contact Finish - Mating	Primary Material
Kycon, Inc. KMDGX-9S-N	Unshielded	Receptacle Female Sockets	Solder	Through Hole Right Angle	Polybutylene Terephthalate (PBT)	Black Silver	Push-Pull	Flash	Audio Video	Copper Alloy	Keyed	-25 °C	80 C	12 V	Mini DIN	Polybutylene Terephthalate (PBT)	9	Gold	Plastic
