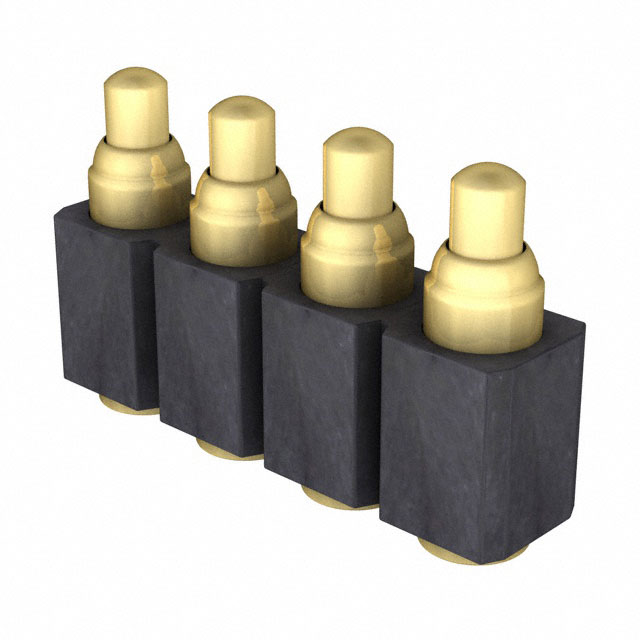

821-S1-004-30-013101

Active

PRECI-DIP SA

CONN SPRING PISTON 4POS SMD

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONN SPRING PISTON 4POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Material	Connector Type	Number of Contacts	Number of Contacts [custom]
PRECI-DIP SA 821-S1-002-30-014101	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston
PRECI-DIP SA 821-S1-003-30-015191	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston	3
PRECI-DIP SA 821-S1-002-30-013101	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston
PRECI-DIP SA 821-S1-010-30-012101	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston	10
PRECI-DIP SA 821-S1-007-30-013191	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston	7
PRECI-DIP SA 821-S1-003-30-012101	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston	3
PRECI-DIP SA 821-S1-010-30-014191	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston	10
PRECI-DIP SA 821-S1-004-30-013101	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston		4
PRECI-DIP SA 821-S1-007-30-012101	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston	7
PRECI-DIP SA 821-S1-002-30-012101	1	0.079 in	2 mm	Gold	Surface Mount	19.7 µin	0.5 µm	Brass Alloy	Piston

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Spring Piston Connector Surface Mount
