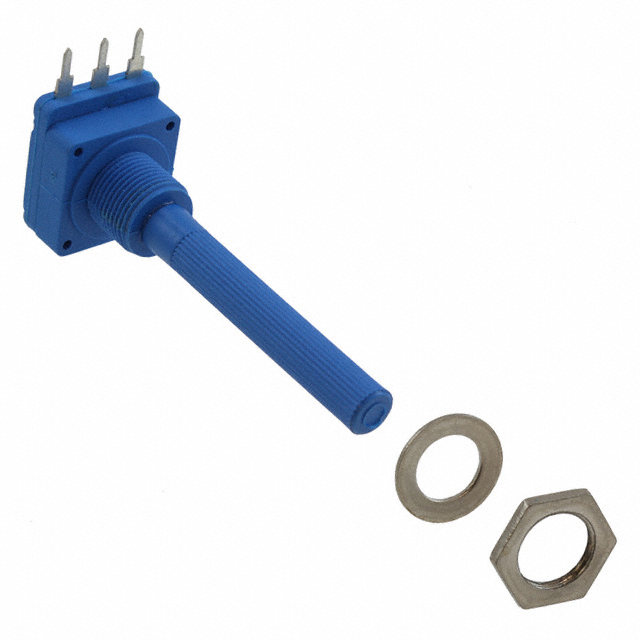

CP16SH10IP06472IF

Active

TE Connectivity Passive Product

POT 4.7K OHM 1/5W CARBON LINEAR

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

POT 4.7K OHM 1/5W CARBON LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Tolerance	Taper	Temperature Coefficient	Adjustment Type	Actuator Type	Rotation	Size - Body [y]	Size - Body [y]	Size - Body [x]	Size - Body [x]	Built in Switch	Resistive Material	Number of Turns	Bushing Thread	Resistance (Ohms)	Power (Watts)	Power (Watts)	Number of Gangs	Actuator Diameter [diameter]	Actuator Diameter [diameter]
TE Connectivity Passive Product CP16SH10IP06472IF	PC Pins	20 %	Linear	300 ppm/°C	Side Adjustment	Knurled	300 ░	16 mm	0.63 in	18 mm	0.807 "	Rotary SPST	Carbon	1	M10 x 0.75	4.7k	0.2 W	1/5	1	0.236 in	6 mm
TE Connectivity Passive Product CP16SH10IP06474IF	PC Pins	20 %	Linear	300 ppm/°C	Side Adjustment	Knurled	300 ░	16 mm	0.63 in	18 mm	0.807 "	Rotary SPST	Carbon	1	M10 x 0.75	470k	0.2 W	1/5	1	0.236 in	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4.7k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.2W, 1/5W PC Pins

Technical documentation and resources

No documents available
