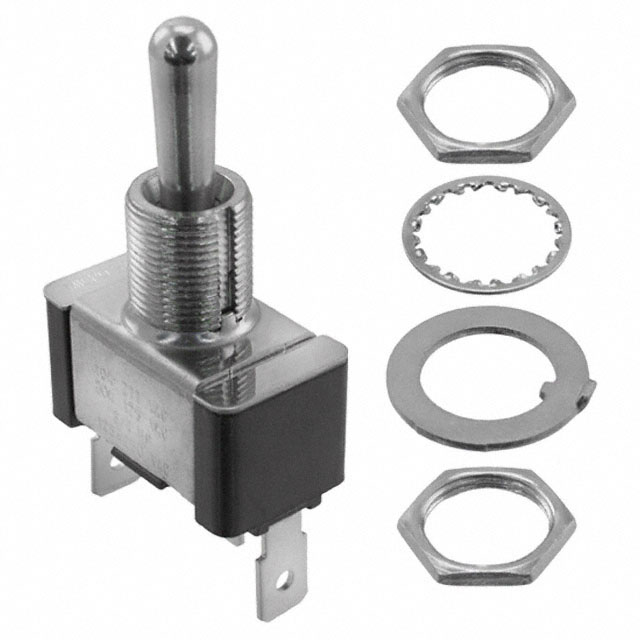

11TS95-7

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 20A 125V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	11TS95-7

Actuator Length [x]	16.51 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	20 A
Illumination	Non-Illuminated
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-54 °C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Illumination	Panel Cutout Dimensions [diameter]	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Bushing Thread	Circuit	Switch Function	Termination Style
Honeywell Sensing and Productivity Solutions 11TS95801-2-TN	20 A	-54 °C	71 °C	Nickel Plated	Non-Illuminated	12.4 mm	Standard Round	125 V
Honeywell Sensing and Productivity Solutions 11TS95-7	20 A	-54 °C	71 °C	Nickel Plated	Non-Illuminated	12.4 mm	Standard Round	125 V	16.51 mm	15/32-32	SPDT	Mom-Off-Mom	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPDT Panel Mount
