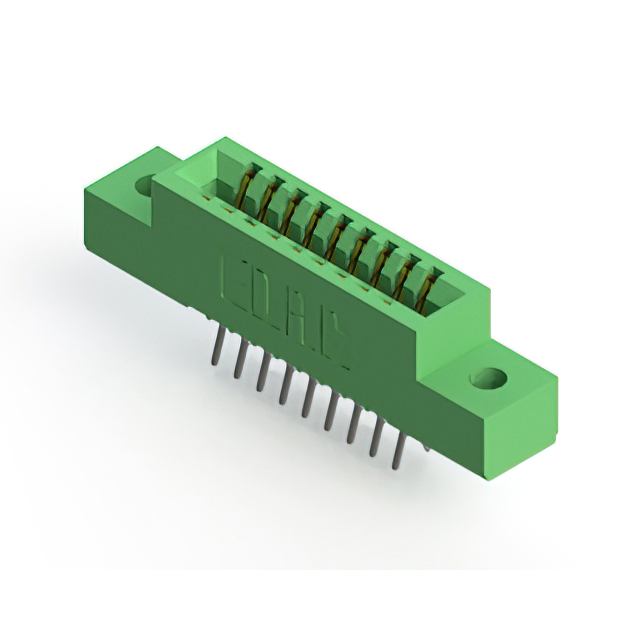

341-018-556-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 18 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-018-556-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 18 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-018-556-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-018 Series
| Part | Number of Rows | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Material | Number of Positions | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Termination | Card Type | Contact Finish Thickness | Contact Finish Thickness | Gender | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Pitch [x] | Pitch [x] | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Through Hole | 9 | Copper Alloy | 18 | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Green | Solder | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | |
EDAC Inc. | 1 | Through Hole | 18 | Copper Alloy | 18 | Semi Bellows | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Green | Solder | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | |
EDAC Inc. | 2 | Board Edge Straddle Mount | 9 | Copper Alloy | 18 | Semi Bellows | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Green | Solder | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Card Extender |
EDAC Inc. | 1 | Through Hole | 18 | Copper Alloy | 18 | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Green | Solder | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | |||
EDAC Inc. | 1 | Through Hole | 18 | Copper Alloy | 18 | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Green | Solder | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | |
EDAC Inc. | 2 | Through Hole | 9 | Copper Alloy | 18 | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Green | Solder | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Card Extender | ||
EDAC Inc. | 2 | Through Hole | 9 | Copper Alloy | 18 | Semi Bellows | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Green | Solder Eyelet(s) | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Diallyl Phthalate (DAP) | |
EDAC Inc. | 1 | Through Hole | 18 | Copper Alloy | 18 | Semi Bellows | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Green | Solder | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | |
EDAC Inc. | 2 | Through Hole | 9 | Copper Alloy | 18 | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Green | Solder | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | |||
EDAC Inc. | 2 | Through Hole | 9 | Copper Alloy | 18 | Semi Bellows | Green | Solder | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.54 mm | 0.1 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.79 | |
Description
General part information
341-018 Series
18 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
