1371R 001500

Active

Belden Inc.

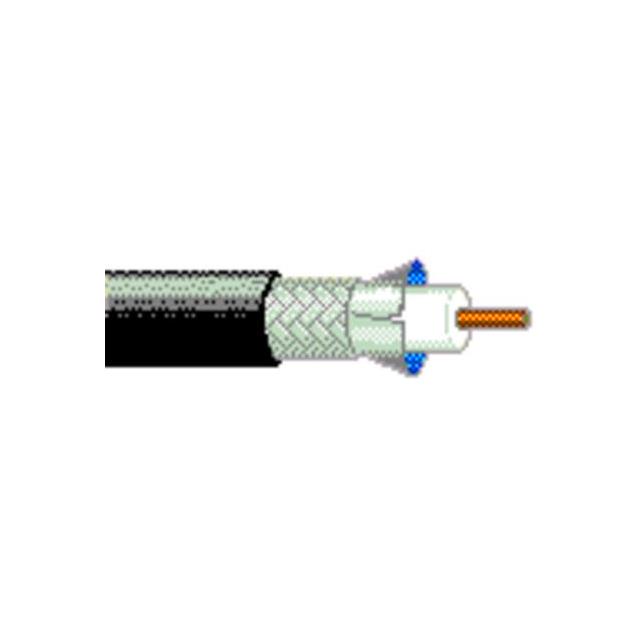

COAX RG59 23AWG 75OHM

Search across all available documentation for this part.

Active

Belden Inc.

COAX RG59 23AWG 75OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1371R 001500

Cable Group	RG-59 Mini
Cable Type	Coaxial - Riser
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.102 in
Dielectric Diameter [diameter]	2.59 mm
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	4.06 mm
Jacket (Insulation) Diameter [diameter]	0.16 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Brown
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Analog Video
VoP, Velocity of Propagation	82
Wire Gauge	23 AWG

Part	Impedance	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Shield Material	Length	Length	Jacket (Insulation) Material	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Usage	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	VoP, Velocity of Propagation	Cable Group	Jacket Color	Shield Type
Belden Inc. 1371R 001500	75 Ohms	Solid	-30 ░C	75 ░C	Coaxial - Riser	Aluminum Copper Tinned	152.4 m	6000 in	Poly-Vinyl Chloride (PVC)	Copper Bare	0.102 in	2.59 mm	Analog Video	23 AWG	4.06 mm	0.16 in	85 % 100 %	82	RG-59 Mini	Brown	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Riser Cable 23 AWG RG-59 Mini 500.0' (152.40m) 75 Ohms
