09416.99.01

Active

Prysmian Group

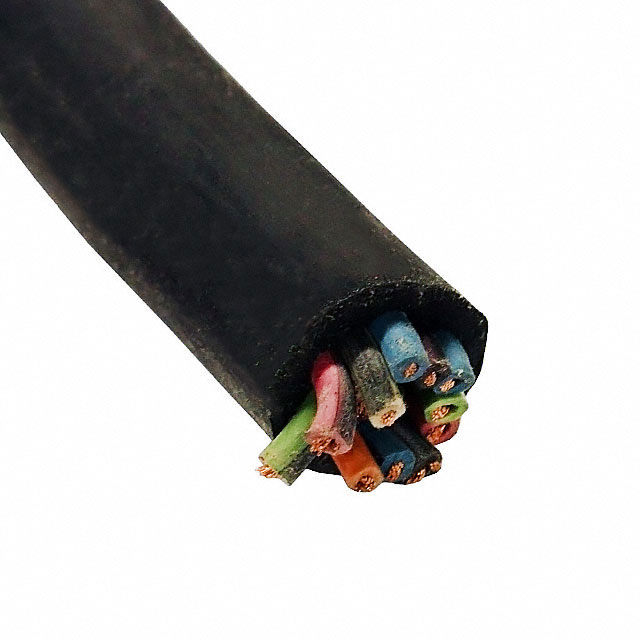

CABLE 16COND 14AWG BLACK 1=1FT

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 16COND 14AWG BLACK 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	09416.99.01

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	26.16 mm
Jacket (Insulation) Diameter [diameter]	1.03 in
Jacket (Insulation) Material	Super Vu-Tron®
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Black
Number of Conductors	16
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Voltage	600 V
Wire Gauge	13.5 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Insulation	Conductor Material	Jacket Color	Number of Conductors
Prysmian Group 09416.99.01	26.16 mm	1.03 in	Multi-Conductor	600 V	41	30 AWG	90 °C	-40 °C	Super Vu-Tron®	1.143 mm	0.045 in	13.5 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	Copper Bare	Black	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.67

General part information

16 Conductor Multi-Conductor Cable Black 14 AWG
